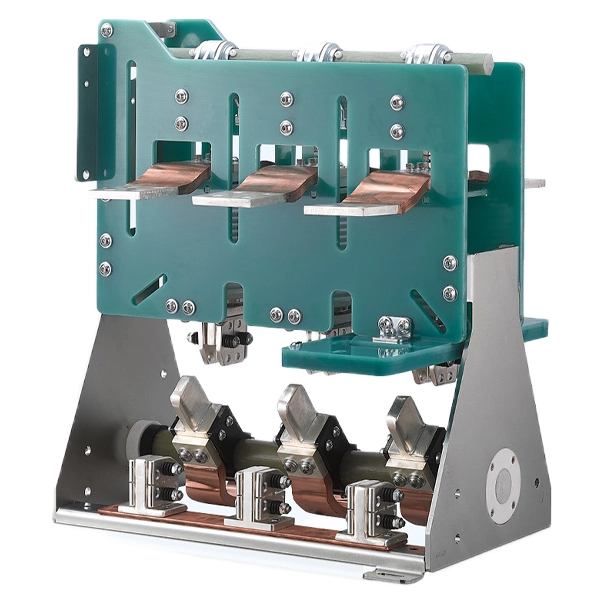

11KV Ring Main Unit Circuit Breaker Isolator Switch

As Cotenele KDV-12D/1250-25 series 11kv medium-voltage vacuum circuit breakers integrated with disconnectors is the core components of RMUs and environmentally friendlly switchgears, they are paramount for ensuring electrical reliabilityin modern power systems.

The VCB is the primary protective device which can interrupt faults of the power equipments to prevent widespread failures, but the disconnector provides a visible and safe means to isolate a section of the circuit for maintenance.

The combination of these two components can enhance safety, saves space, and optimizes the performance of medium-voltage power distribution networks such as industrial facilities, substations and renewable energy systems.

Model

How Vacuum Circuit Breakers Work?

An 11kV Ring Main Unit Circuit Breaker Isolator Switch is a switching device that uses vacuum as the arc-extinguishing medium to interrupt current.

Core Principle

Inside a sealed vacuum interrupter, fixed and movable contacts are housed. Under normal conditions, these contacts remain closed, allowing current to flow.

Fault Interruption

When a fault (like a short circuit) occurs, the actuator mechanism pulls the contacts apart.when the separating contacts due to ionized metal vapors it will form a electrical arc

Arc Quenching

In a vacuum, there are no gases to sustain the arc. The metallic vapors, plasma, and arc are rapidly diffused and condensed back onto the contact surfaces. Because the dielectric strength is restored almost instantly, the arc is extinguished within the first current zero, safely isolating the fault.

VCB vs Switch Disconnector

Though often used in tandem, VCBs and switch disconnectors serve distinct purposes in an power distribution network.

What are the advantages of this operating mechanism?

Using an 11kV Ring Main Unit Circuit Breaker Isolator Switch in a medium-voltage switchgear or medium-voltage ring main unit can bring significant advantages:

Enhanced Maintenance Safety

The switch disconnector provides a visible isolating gap. They can open the disconnector before the technical operator work on a circuit to interrupt the power supply of the downstream side of the VCB, guaranteeing safety.

Space and Cost Efficiency

It"s the common for integrating the disconnector with the vacuum circuit breaker in modern medium-voltage switchgear panel, which can reduce the physical footprint compared to installing two separate, standalone devices. This is crucial for space-constrained commercial buildings and compact substations (CSS).

Superior Protection Coordination

The VCB handles the automatic interruption of dangerous fault currents, while the switch disconnector manages the manual switching of loads.This design can extend the vacuum circuit breaker operation life due to the VCB is not worn down by frequent load switching.

Versatility in Network Design

This solutions of combination for the vacuum circuit breaker and disconnector can create a robust and flexible power distibution grid such as an air-insulated switch disconnector can be combined with fuses for transformer protection, while the VCB handles the main incoming protection.

Technical Parameters

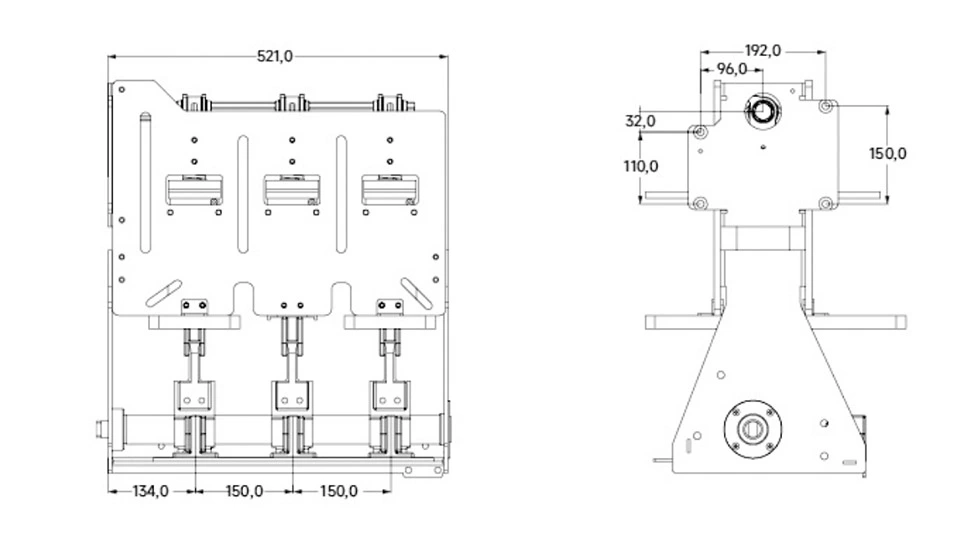

Appearance and Dimension

FAQ

Q1:How to buy your products?

A: You can contact our website service or send the email to us, and tell us the technical parameters of your project or send us the technical documents, we will send you the good price based on your project information, if you accepted the price, we can sign the contract.belowing is the contact information:
Eric: phone/whatsapp/wechat:+86 18662318620
E-mail:info@cotenele.com

Q2:What is the price of an 11KV Ring Main Unit Circuit Breaker Isolator Switch?

A:This depends on the specific requirements of your project, but rest assured that we will offer you the best price and discount based on the specific situation of your order. Please contact us promptly if have the relevant project.

Q3:Are you a manufacturer or a factory?

A: We are a manufactuer which has a self owned factory covering an area of over 30, 000 square meters.Contenele International Trading Co., Ltd. is an international trading company established to facilitate the import and export of goods.

Q4:Which countries and regions are your products mainly exported to?

A: Our products are sold well in over 50 countries and regions worldwide, including Russia, Europe, Africa, and the Middle East.

Q5:How is the quality of your products?

A: So far, our factory has more than 10 years of experience in producing and developing 12kv-40.5kv vacuum circuit breakers, isolating switches, load switches, and operating mechanisms. We have provided over hundreds of thousands of core components for the inflatable cabinets and environmental protection cabinets of State Grid and domestic and foreign customers. The factory has passed ISO9001 quality management system certification, ISO14001 environmental management system certification, and ISO18001 occupational health and safety management system certification.

Products Show
