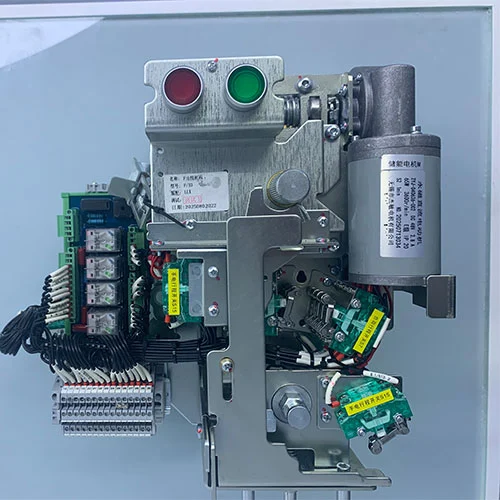

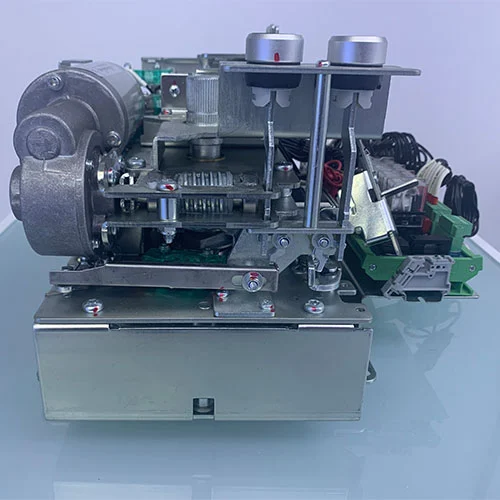

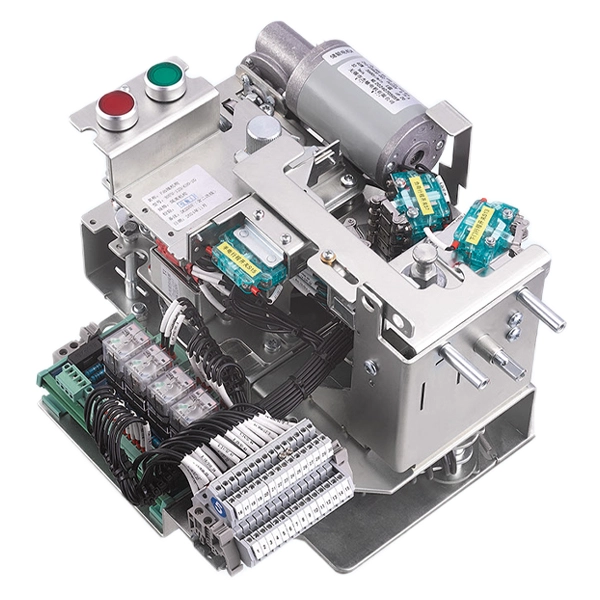

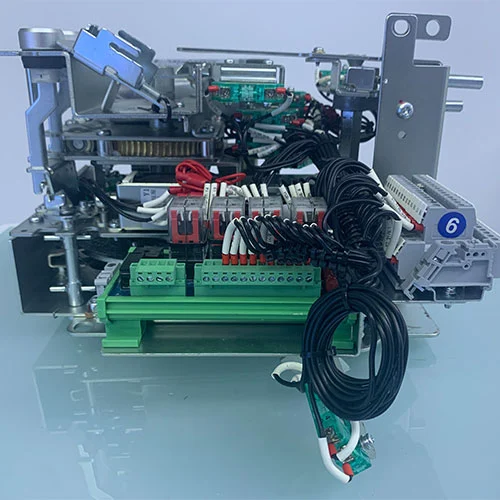

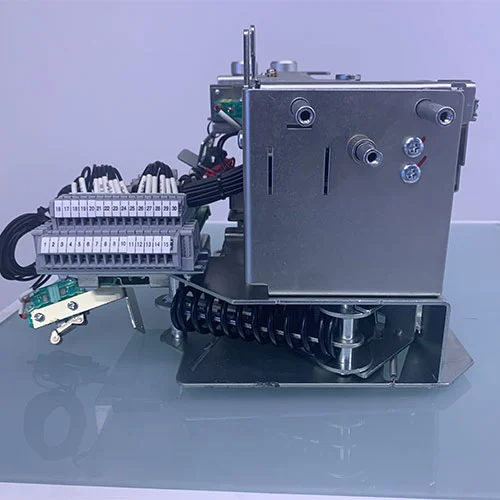

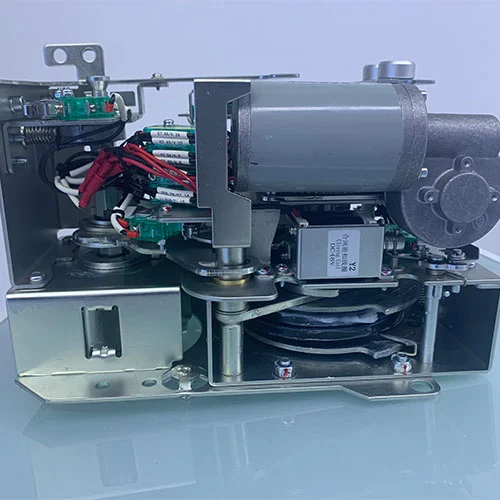

11KV Operating Mechanism for MV Ring Main Unit

There are generally two insulation methods for ring main units, one is gas-insulated ring main units and the other is environmentally friendly ring main units.

Gas-insulated ring main unit mainly uses SF6 gas as the insulation medium, while environmentally friendly RMU generally use vacuum or environmentally friendly gases such as dry air or environmentally friendly mixed gases, as well as solid materials such as epoxy resin and silicone rubber as the insulation medium.the 11KV Operating Mechanism For MV Ring Main Unit is the core component that drives the switching device to perform opening and closing operations in these ring main units.

Its reliability, operational ease, and level of automation directly affect the performance of the equipment. Particularly in the load switch-fuse combination unit (F-unit) responsible for transformer protection, its operating mechanism—commonly referred to as the "F-mechanism" —not only performs routine switching operations but also undertakes the critical task of cooperating with the fuse to complete fault protection.

Model

What is an Outgoing Mechanism (F-mechanism)?

The F-mechanism is the core component dedicated to controlling the combination of a load break switch and a fuse in the outgoing unit. The outgoing mechanism primary function is to execute opening and closing operations of the load break switch, this can ensure reliable coordination and interlocking with the fuse, thereby achieving safe circuit interruption under both normal switching and fault conditions. Integrating components such as the operating handle interface, energy storage spring, transmission linkages, auxiliary switches, interlocks, and an electric operation module, the F-mechanism acts as both the "muscle" that drives the switching device and the "brain" that enforces proper sequencing and safety logic, guaranteeing dependable operation and protection for the outgoing feeder.

What are the functions of this operating mechanism?

The 11KV Operating Mechanism for MV Ring Main Unit is primarily used to control the load switch and fuse combination unit (F unit) to ensure safe and reliable system operation. Its main functions include the following three aspects:

1. Control and Operation: Provides manual or electric operation modes, enabling "three-way operation" of the load switch (open, close, and ground).

Operators can safely control the internal high-voltage circuit switches via the operating handle or panel buttons, enabling daily line switching and maintenance.

2. Protection Coordination: This is the core and most unique function of the F mechanism: When a short-circuit fault occurs in the downstream transformer or line, the fuse blows, and its triggering mechanism activates the F mechanism, forcing the load switch to trip immediately.

Main Purposes:

1. Interrupting Fault Current: The fuse and the F mechanism work together to quickly isolate the short-circuit current.

2. Preventing Single-Phase Operation: The load switch simultaneously disconnects the three-phase power supply, preventing single-phase or two-phase operation of the transformer when some fuses have blown, thus protecting equipment safety.

3. Visual Disconnection: After the load switch trips, a visual disconnection is formed, facilitating fault location and maintenance operations.

3. Interlocking and Safety: The F-mechanism integrates a five-prevention interlocking device, using precise mechanical logic to prevent misoperation:

When the load switch is closed, it prevents the grounding switch from closing.

When the grounding switch is closed, it prevents the load switch from closing.

In some designs, the cabinet door can only be opened after the load switch is disconnected.

This ensures the safety of operators and equipment, serving as the last line of defense for the high-voltage power distribution system.

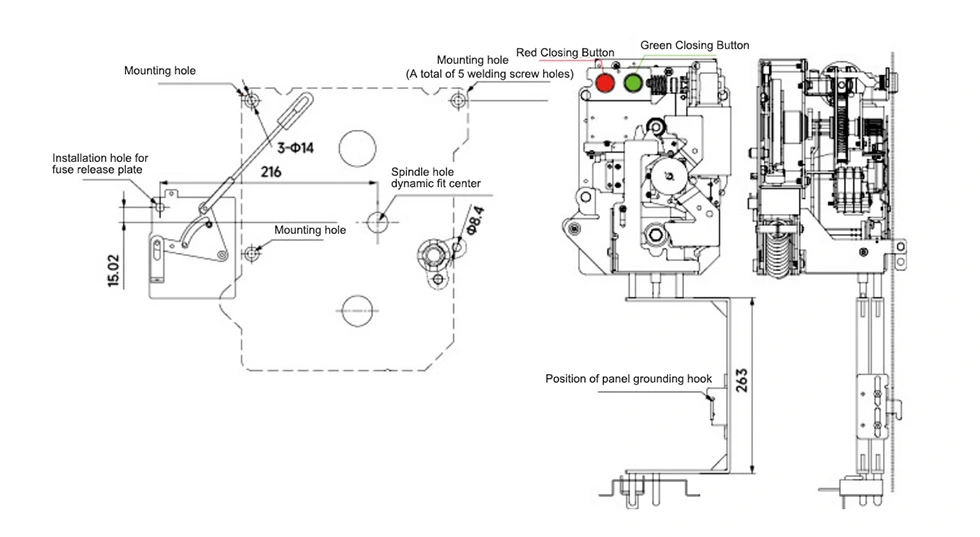

Appearance And Dimension

FAQ

Q1: Does the 11KV Operating Mechanism for MV Ring Main Unit support bulk purchasing?

A1: Yes, we supply directly from our factory and can provide OEM customization and bulk purchasing solutions.

Q2: Does the product meet high-voltage switch standards?

A2: Yes, this series of products meets the requirements of relevant standards and specifications such as GB16926-2009 "High-Voltage AC Load Switch Fuse Combination Device".

Q3: Is technical support and installation guidance provided?

A3: We provide on-site technical guidance, installation, and commissioning support to ensure smooth use by our customers.

Why Choose Cotenele?

1. China manufacturer, factory direct supply, significant price advantage

2. Independently developed core components, multiple patents and type tests

3. High reliability, safety, and low maintenance costs

4. Successfully applied in large-scale power projects both domestically and internationally

5. Comprehensive after-sales service, providing technical support and training

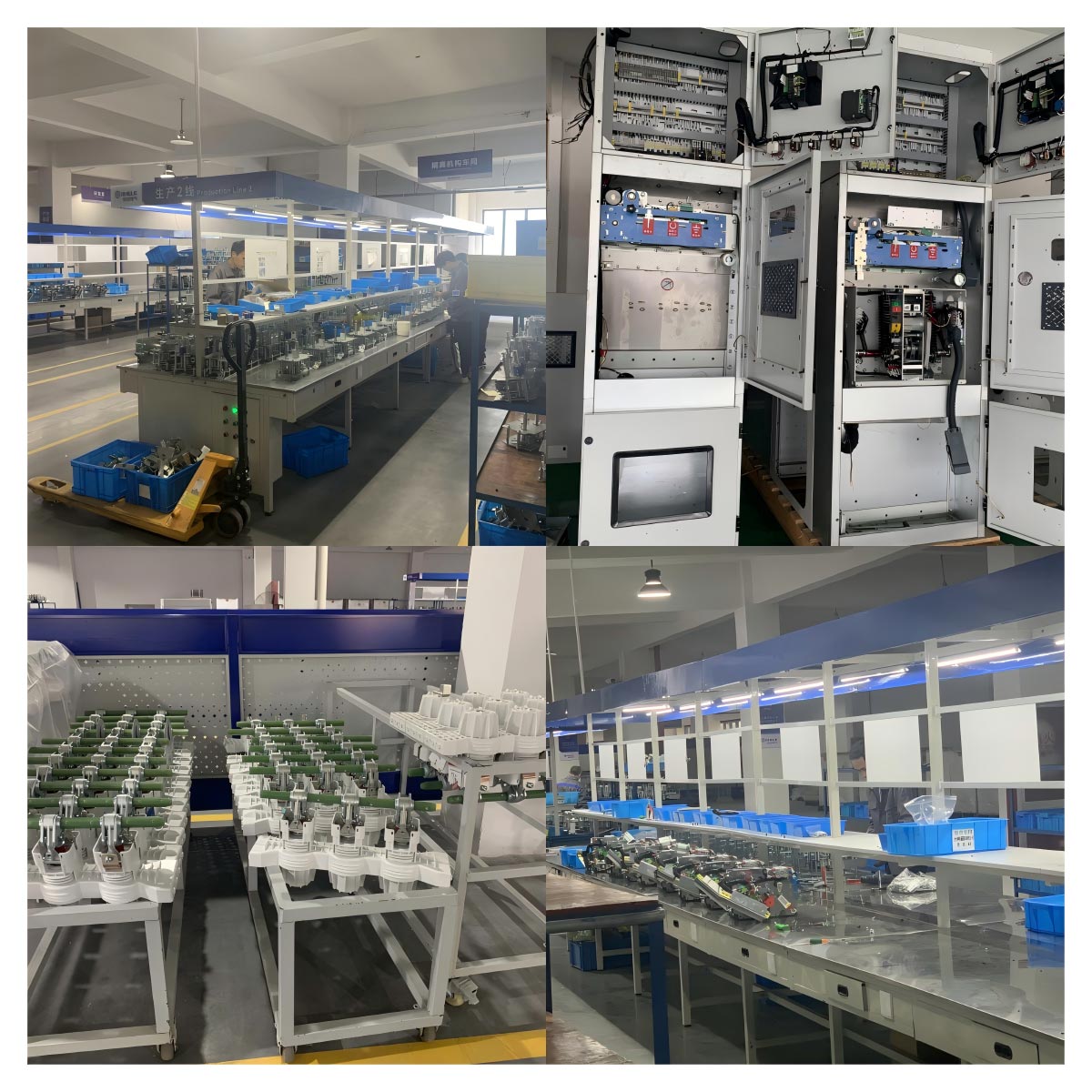

Products Show
