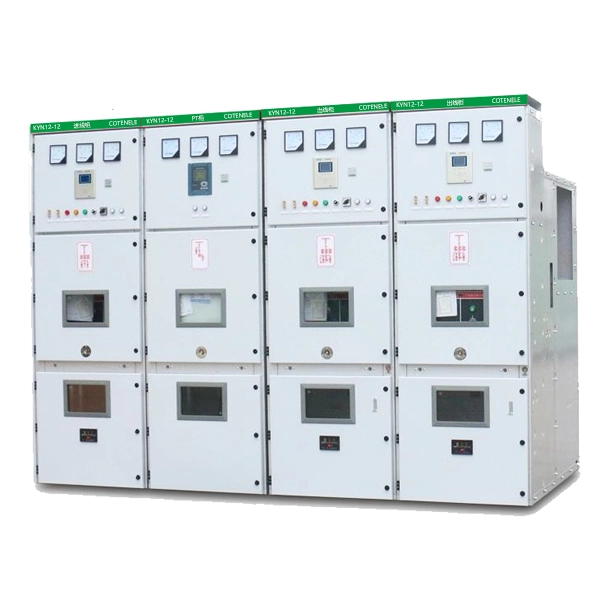

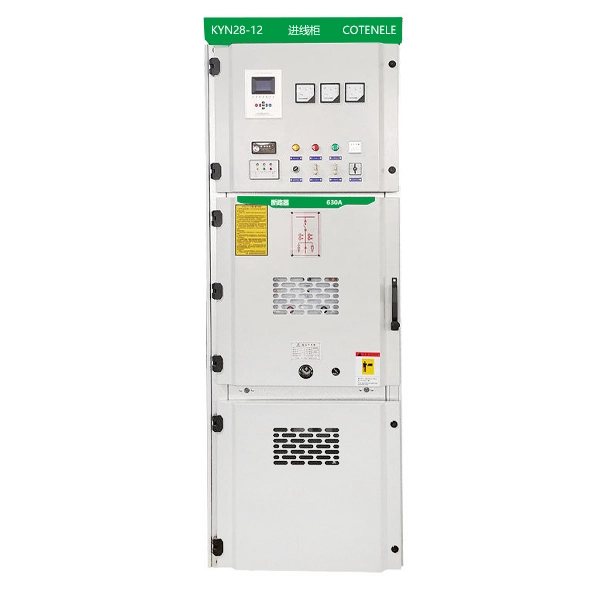

11KV Indoor Metal Clad Medium Voltage Switchgear
Cotenele is a manufacturing electrical panels factory which is located in Wenzhou city of China,we provide kyn28-12 series 11KV Indoor Metal Clad Medium Voltage Switchgear and the internal core components such as vacuum circuit breaker,load break switch,current transformer and voltage transformer ect within them,our eletrical products have exported lots of countries and regions oversea,and they are widely praised by our clients.
Cotenele is a main supplier for the kyn28-12 series 11KV Indoor Metal Clad Medium Voltage Switchgear in China,this medium-voltage switchgear commonly known as a “drawout” or “withdrawable” panel, is designed for safe and flexible power distribution. Its defining feature is the removable circuit breaker truck that can be rolled into “service” or “test/isolated” positions, enabling quick replacement and maintenance without de‑energizing the entire assembly.
A robust metal‑enclosed construction, partitioned compartments (breaker, busbar, cable, and instrument rooms), and mandatory mechanical interlocks (five‑protection functions) ensure high operational safety. These units are widely applied in primary and secondary distribution networks of power substations, industrial plants (steel, petrochemical, mining), commercial buildings, data centers, and renewable energy installations such as solar farms and wind parks.They comply with international standard IEC 62271‑200,and and national standard GB/T 3906, and DL/T 404.
Product Model
Main technical parameters
| ltem | Unit | Technical Parameters | |
| Rated voltage | KV | 3.6、7.2、12 | |
| Rated frequency | Hz | 50 | |
| Rated current of circuit breaker | A | 630、1250、1600、2000、2500、3150 | |
| Rated current of switchgear | A | 630、1250、1600、2000、2500、3150 | |
| Rated short-time withstand current(4S) | KA | 20、25、31.5、40 | |
| Rated peak withstand current(peak) | KA | 50、63、80、100 | |
| Rated short circuit breaking current | KA | 20、25、31.5、40 | |
| Rated short-circuit closing current(peak) | KA | 50、63、80、100 | |
|
Rated insulation level 1-minute power frequency withstand voltage |
Phase-to-phase, Phase-to-ground |
KV | 24、32、42 |
| Between open contacts | KV | 24、32、42 | |
|
Lightning impulse Withstand voltage(peak value) |
Phase-to-phase, Phase-to-ground |
KV | 40、60、75 |
| Between open contacts | KV | 46、70、85 | |
| Protection grade | The shell is IP4X,and when the compartment and circuit breaker room doors are opened,it is IP2X. | ||
Working conditions
1. Ambient air temperature: maximum +40 °C, minimum –15 °C.
2. Relative humidity: daily average ≤95 % with a corresponding daily average water vapour pressure not exceeding 2.2 KPa; monthly average ≤90 % with a corresponding monthly average water vapour pressure not exceeding 1.8 KPa.
3. Altitude: not exceeding 1000 m above sea level.
4. Seismic intensity: not greater than Magnitude 8.
5. The surrounding air shall be free from significant contamination by corrosive or combustible gases, water vapour, or similar agents.
6. The installation site shall be free from severe vibration.
7. If the operating conditions exceed the normal limits specified in GB3906, the user and our company shall mutually agree on the necessary provisions through consultation.
What Is Drawout Metal-Enclosed Switchgear？
The KYN28-12 11KV Indoor Metal Clad Medium Voltage Switchgear is a electrical device which circuit breaker truck is installed in the middle compartment of the switchgear. The entire enclosure is divided into four independent compartments by metal partitions:
1. Breaker Compartment (middle):Houses the vacuum circuit breaker truck (e.g., VS1 or VD4). The truck has three positions: Service, Test/Isolation, and Removed. It can be easily racked in/out, allowing convenient maintenance-Replacing the breaker does not require de-energizing the whole panel.
2. Busbar Compartment:Located at the upper rear part. Contains main busbars and branch busbars that connect multiple switchgear panels.
3. Cable Compartment:Located at the lower rear part. Used for connecting outgoing cables, surge arresters, and earthing switches.
4. Low-voltage (Instrument) Compartment: Located at the front upper part. Houses protection relays (microcomputer-based), instruments, indicator lights, and other secondary components.
Observation windows: Each compartment is fully separated by earthed metal partitions, effectively preventing an internal arc fault in one compartment from affecting adjacent compartments. The front panel has observation windows to view the truck position and isolation contact status.
| Component | Common Model | Function |
| Vacuum circuit breaker | VS1,VD4 | Make/break normal load and short-circuit currents |
| Earthing switch | JN15-12 | Close to earth the cable side during maintenance for personnel safety |
| Current transformer | LZZBJ9-10 | Measure current,provide signals for protection |
| Voltage transformer | JDZ(J)10 | Provide voltage signals and control power |
| Surge arrester | HY5WZ-17/45 | Limit lightning and switching overvoltages |
| Microcomputer-based protection relay | e.g.,RCS-9600 series | Overcurrent,instantaneous,earth fault protection |
Main Components Configuration
What Are The Advantages Of KYN28-12 Withdrawable Metal-Enclosed Switchgears?
1. High reliability: Metal-clad construction with strong internal arc withstand capability, ensuring safety.
2. Easy maintenance: Withdrawable design – breaker replacement takes only minutes, significantly reducing outage time.
3. Five-prevention interlocks: Mechanical/electrical interlocks prevent five types of misoperation (e.g., no load-break switching, no accidental entry into live compartments).
4. High standardization: Mature production by many domestic manufacturers, good spare part interchangeability, low procurement and maintenance costs.
5. Flexible configuration: Can be assembled as incoming, outgoing, metering, PT, bus-tie panels, etc., adapting to various main connection schemes.
| Feature | KYN28-12(withdrawable) | XGN2-12(fixed) | HXGN-12(ring main unit) |
| Breaker type | Withdrawable (truck) | Fixed mounted | Load break switch +fuse combinatior |
| Maintenance convenience | Excellent | Poor | Medium |
| Breaking capacity | High (up to 40kA) | Medium | Low(fuse protection) |
| Size | Larger | Larger | Small |
| Cost | Medium | Lower | Low |
| Typical application | Main distribution,high capacity | Retrofits,low requirement | End-user distribution,small capacity |
KYN28-12 Drawout Metal-Enclosed Switchgear VS Other switchgears

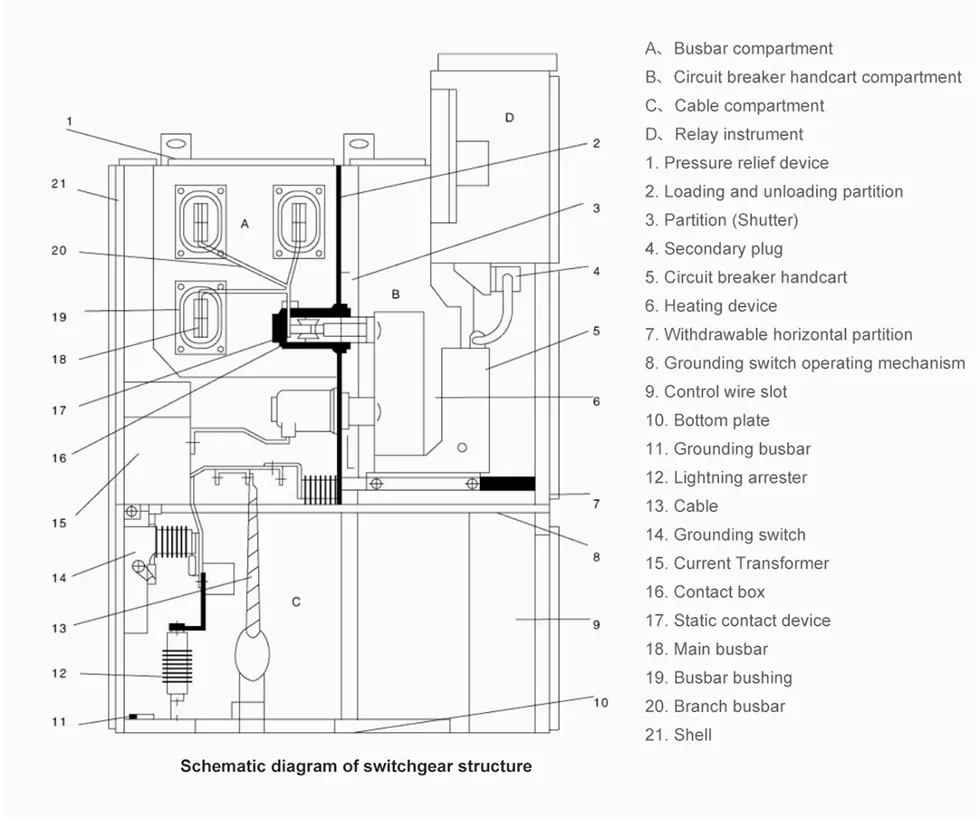

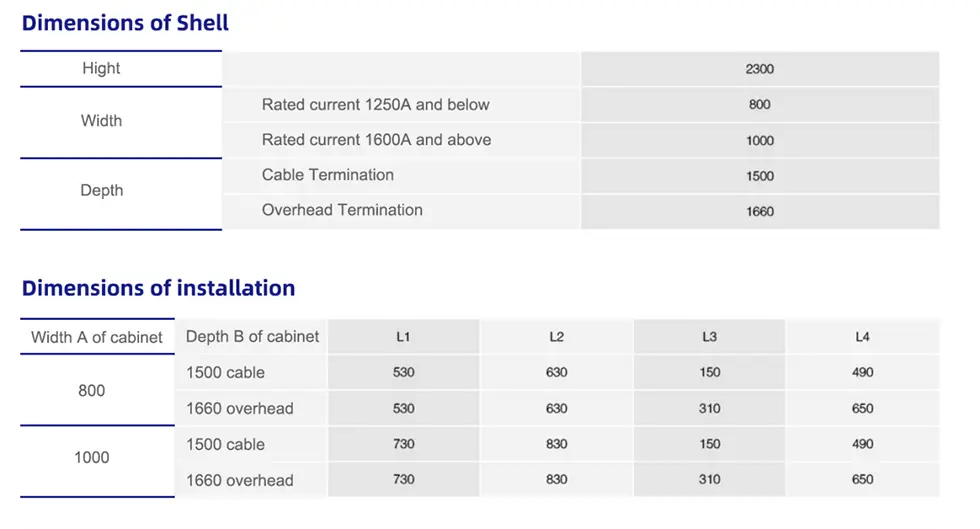

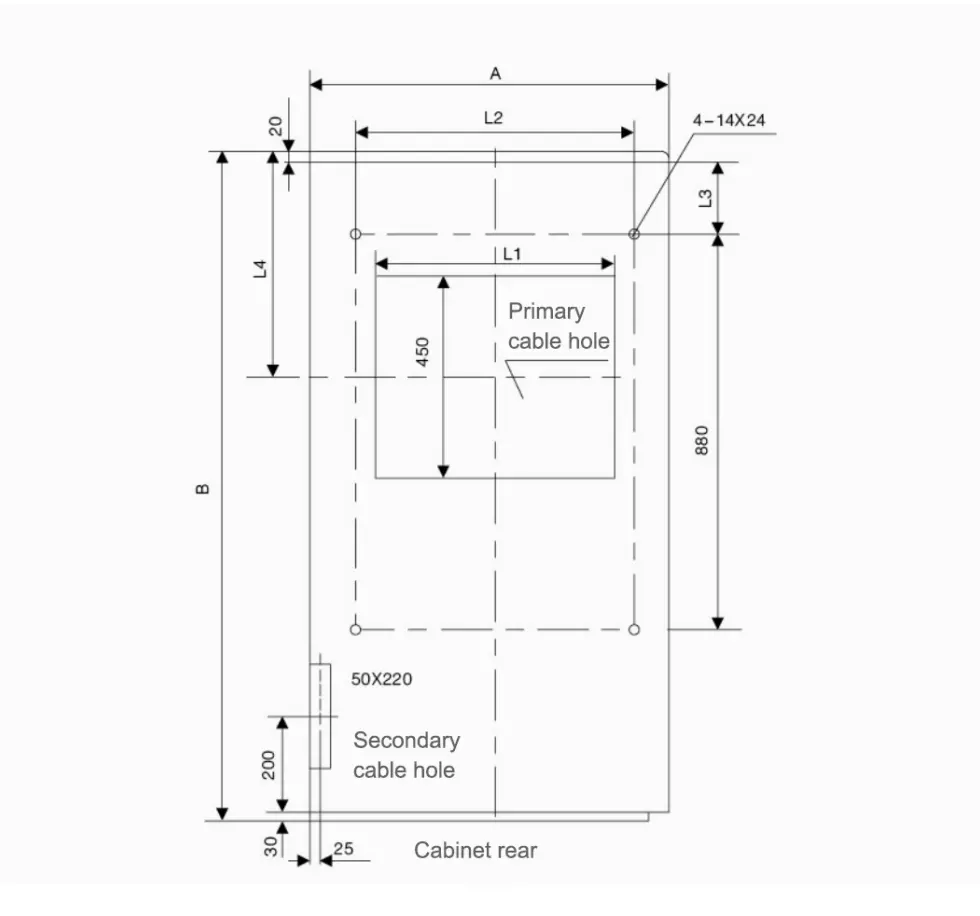

Schematic diagram of switchgear structure and installation

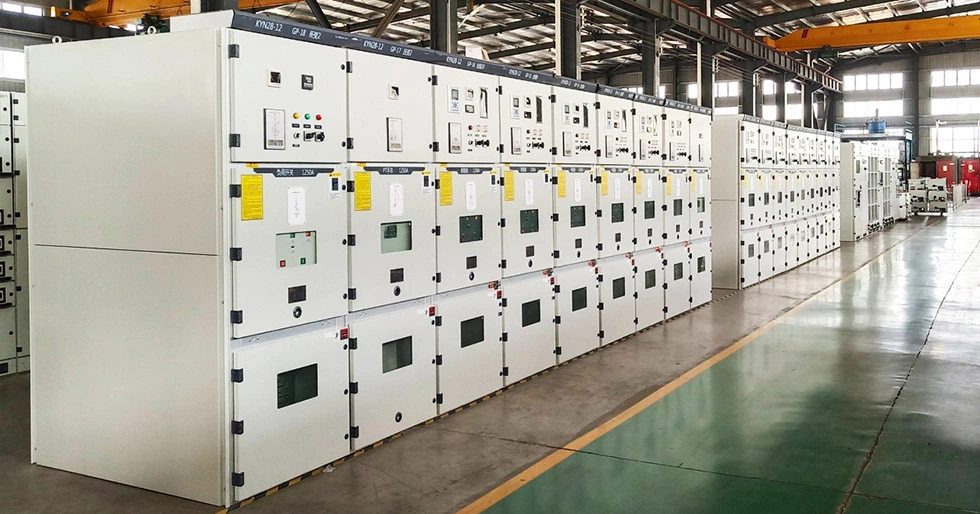

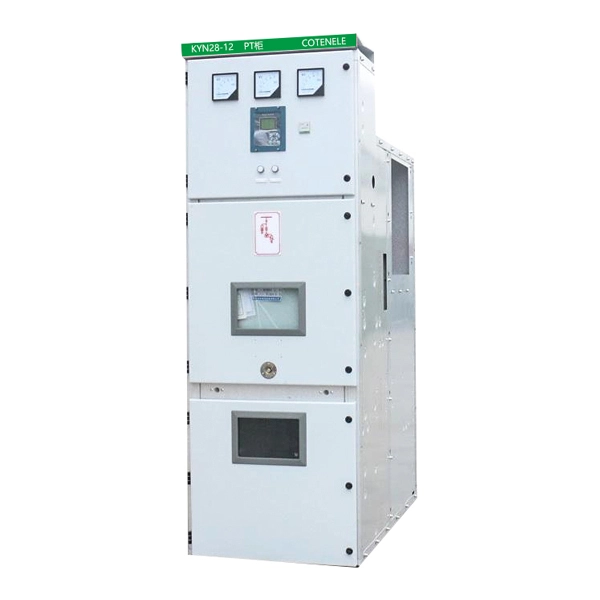

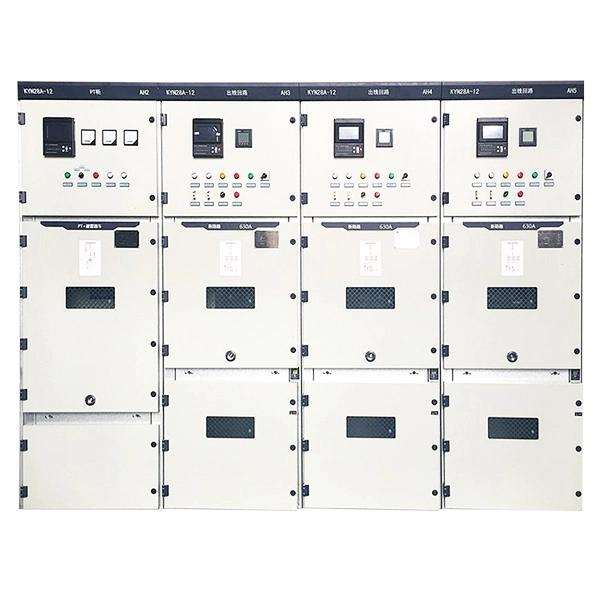

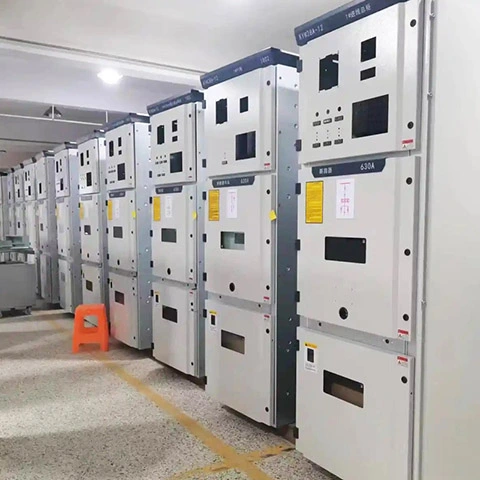

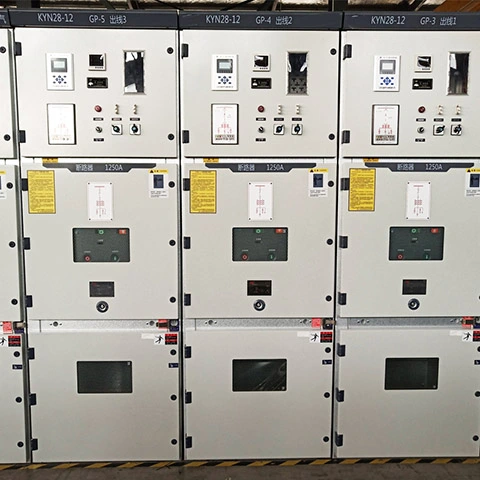

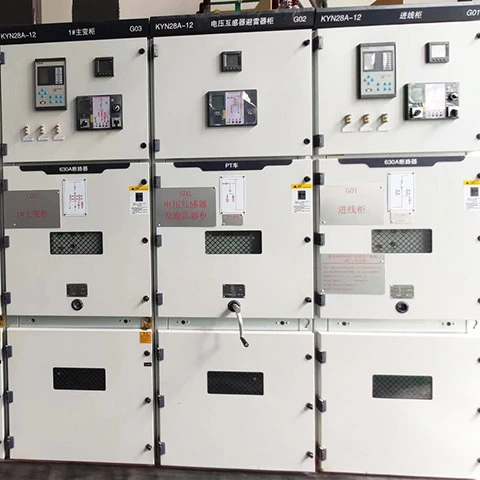

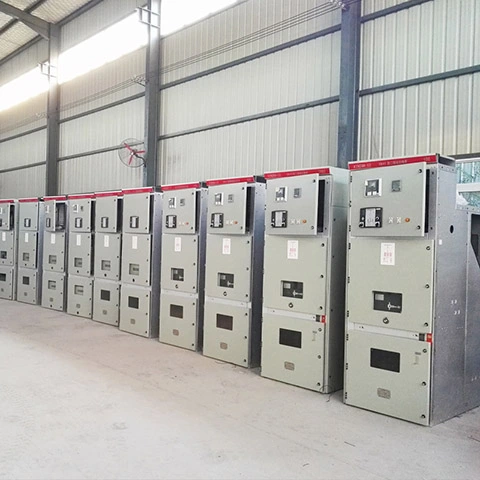

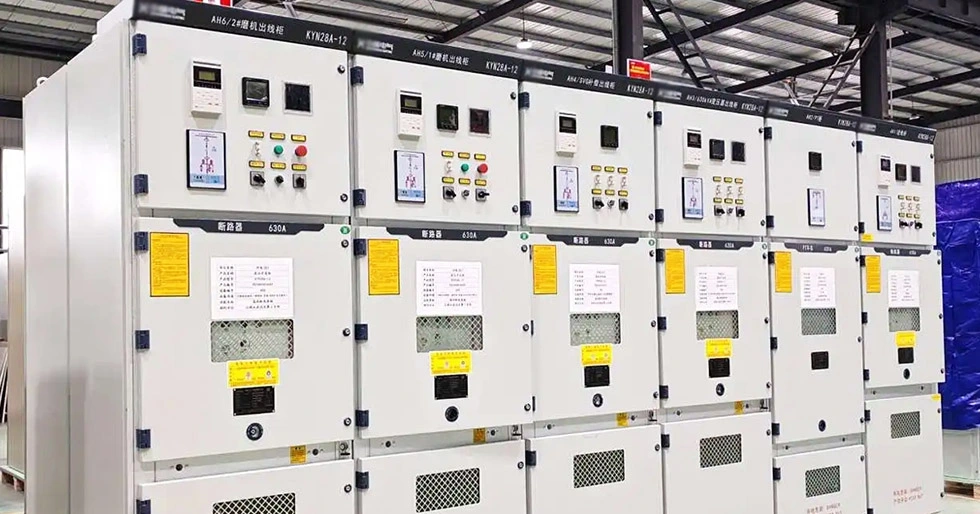

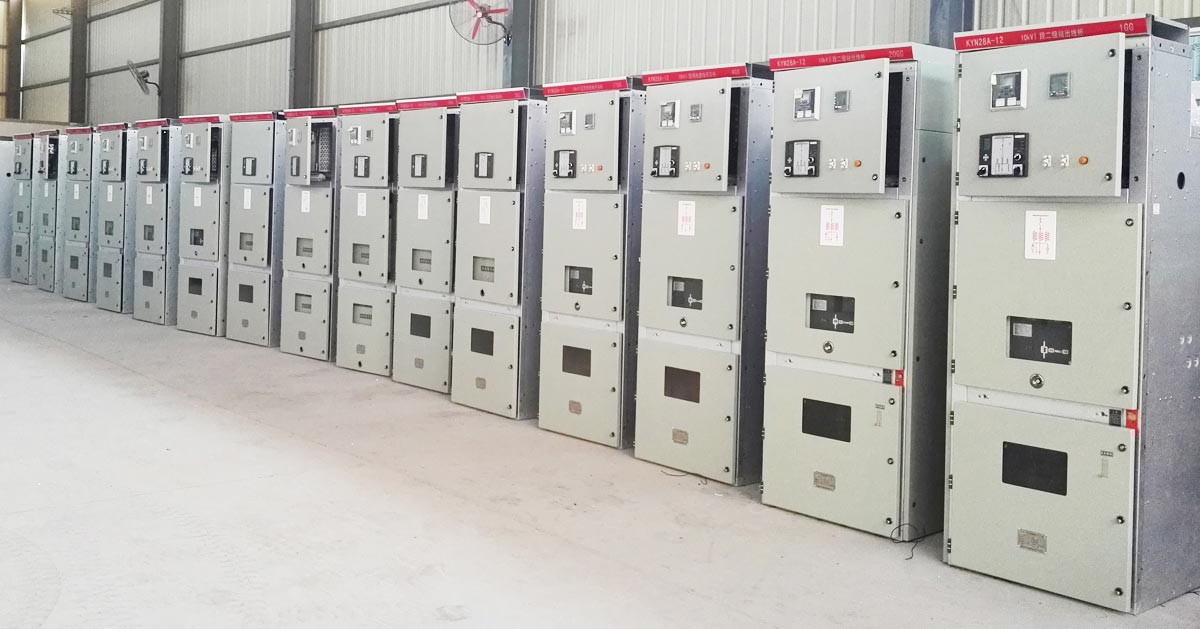

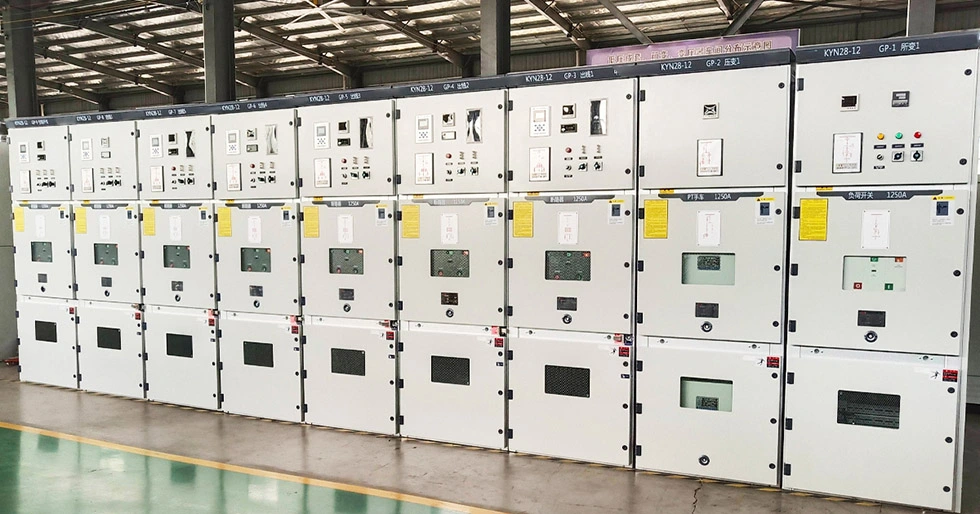

Products show
