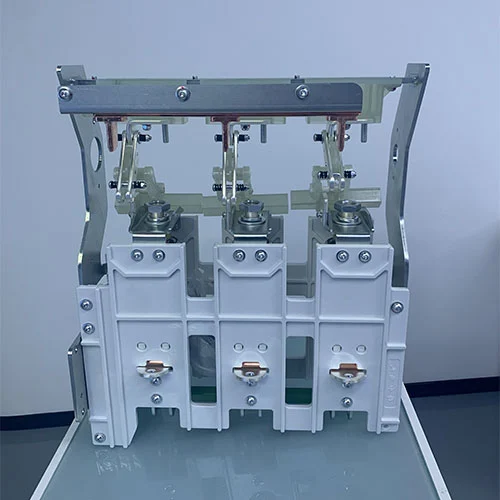

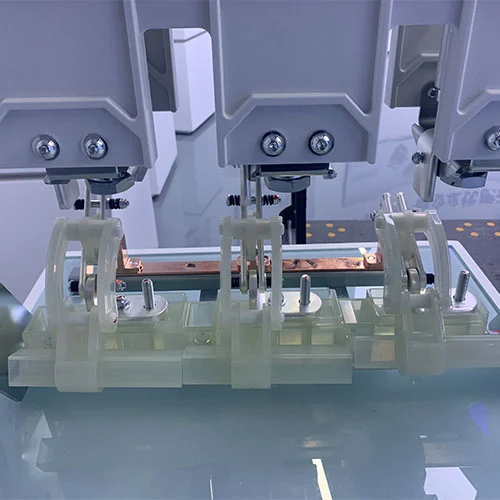

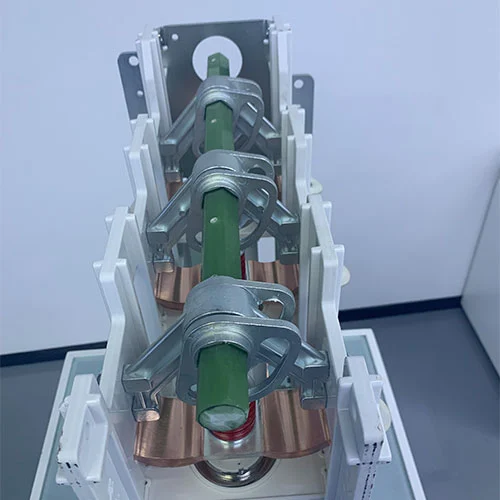

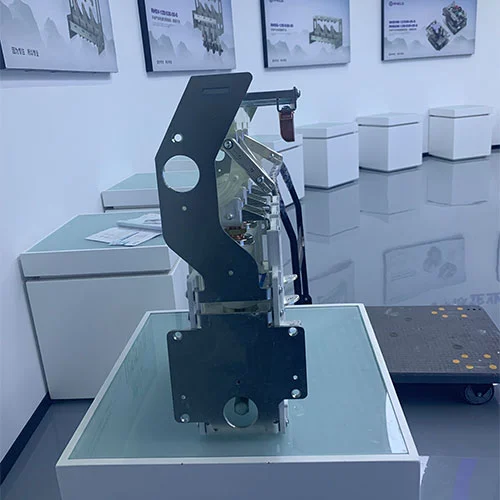

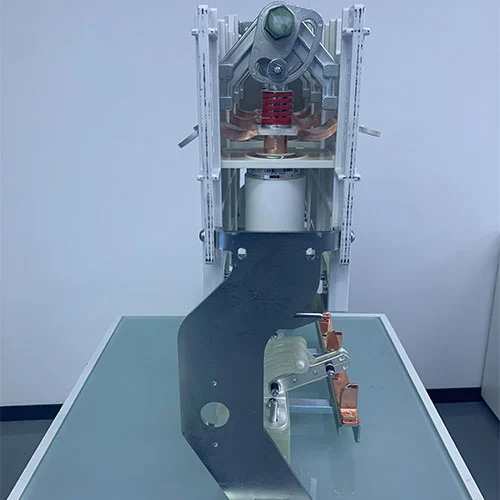

11KV MV Panels Vacuum Circuit Breaker Isolating Switch

The reliability and sustainability is the most important for the medium-voltage environmental-friendly ring main units and switchgears in modern power distribution systems . Most of circuit breaker faults are associated with their operating mechanisms, this indicates the importance of robust and reliablity for the operation mechanism. No matter the manual type or electric tpye, these 11KV MV Panels Vacuum Circuit Breaker Isolating Switchs are the "muscle" that drives the breaking device.The vacuum circuit breakers and the switch disconnectors can ensure comprehensive protection and control in the power grid. The vacuum circuit breaker acts as an automatic reacting to faults, while the switch disconnector serves as a manual checkpoint, which combination can ensure a circuit is safe to work on. These two componnents of the eco-friendly RMUs is key to maintaining a resilient electrical infrastructure.

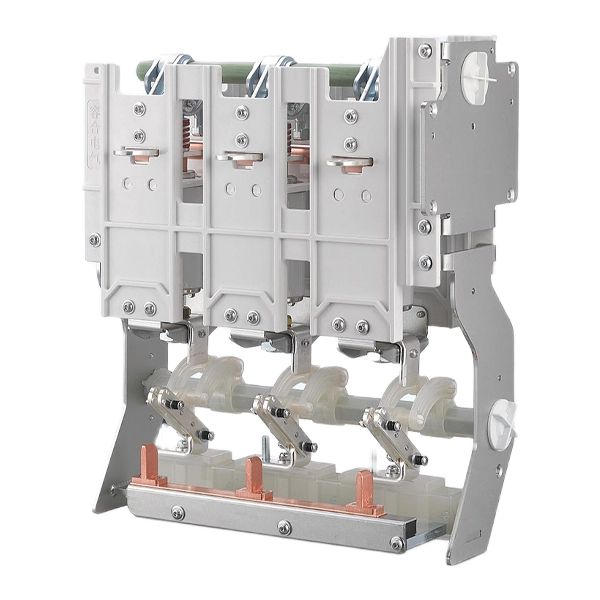

Product Model

Vacuum Circuit Breaker

A vacuum circuit breaker (VCB) is an electrical componnents of the switchgear or ring main unit in the power distribution system, which interrupts current flow using a vacuum as the arc-extinguishing medium. The vacuum circuit breakers unlike circuit breakers that rely on oil or gas (like SF₆), a VCB houses its fixed and movable contacts within a sealed vacuum interrupter.

When a fault occurs, the contacts separate and creating an electrical arc.Due to the surrounding environment is a vacuum, there are no gases to ionize and sustain the arc. The arc is quickly extinguished as the metal vapor from the contacts condenses, restoring dielectric strength almost instantly. This process is highly efficient, rapid, and environmentally friendly. VCBs are predominantly used in medium-voltage applications (3kV to 40.5kV), and the have the advatages of long life, low maintenance, and ability to handle frequent switching operations..

Switch Disconnector

A switch disconnector is a core component in the environmental friendly RMU, which provides two main functions. First, this switch can safely make, carry, and break the normal load current of a circuit. Second, in the open position, this isolation switch provides a specified degree of isolation, creating a visible and safe disconnection point for maintenance or troubleshooting.

While it can handle normal operational currents, a switch disconnector is not designed to interrupt high fault currents (like short circuits). It must be able to withstand these high currents for a short duration but relies on an upstream fuse or circuit breaker to actually clear the fault. They are essential for sectionalizing cables, switching transformers, and isolating ring network units, and can be either air-insulated or gas-insulated (SF₆or SF₆-free) for a compact footprint.

Key Differences Between a Vacuum Circuit Breaker and a Switch Disconnector

While both are switching devices, their primary functions are distinct:

Technical Parameters of the Vacuum Circuit Breaker With Switch Disconnector

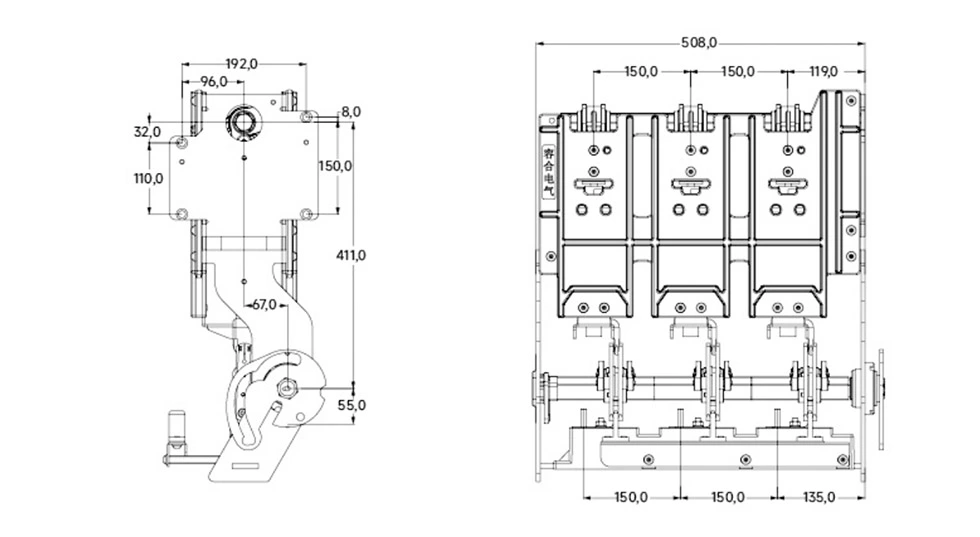

Appearance and Dimension

FAQ

1. Why is a vacuum used to extinguish the arc in a VCB?

A vacuum is an incredibly effective arc-quenching medium because it has almost no particles to ionize. When the contact point of the vacuum circuit breaker separated, the arc will be formed by metal vapor. In a vacuum environment, this vapor will quickly re condense onto the contact surface, ionize the contact gap, and prevent the arc from reigniting. This process can be completed within milliseconds.

2. Can a switch disconnector be used as a standalone protection device?

No. A switch disconnector is a switching and isolating device, not a protection device. It cannot interrupt short-circuit currents. For complete protection, it must be used in series with a fault-current interrupting device, such as a set of fuses (forming a switch-fuse combination) or with a circuit breaker.

3. How does the 11KV MV Panels Vacuum Circuit Breaker Isolating Switch affect control and protect a circuit breaker or disconnetor?

The operating mechanism of the vacuum circuit breaker or switch disconnector stores and releases the energy needed to open and close the breaker contacts. which is the most failure-prone part of a switch of the switchgear. A reliable operating mechanism, such as the spring-operated mechanism described for the RHV-12D/630-20, ensures consistent opening and closing speeds and forces, which are very important for safely interrupting faults and achieving long mechanical life (over 10, 000 operations).

4. What are the main advantages of using a VCB over an SF₆ circuit breaker?

The primary advantage is environmental friendly. SF₆ gas is a potent greenhouse gas which is not conducive for the environmental protection. VCBs use a vacuum as the arc extinguishing medium, which is environmentally harmless. Additionally, VCBs generally require less maintenance and have a simpler construction, as they do not need systems to manage gas pressure or decomposition.

5. In a typical application, how do a VCB and a switch disconnector work together?

Consider an industrial power distribution scheme. A VCB on the incoming feeder protects the entire installation against faults. For a specific large motor, a switch disconnector might be installed locally. Under normal conditions, the operator uses the switch disconnector to start and stop the motor.If a fault occurs in the medium-voltage switchgear or eco-friendly RMU of the power distribution system, the upstream VCB will trip to clear the fault. When the fault is resolved, the operator can safely open the local switch disconnector to provide a visible isolation point before performing maintenance on the eletrical device.

About us

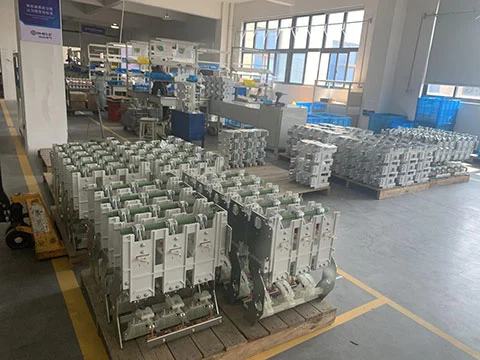

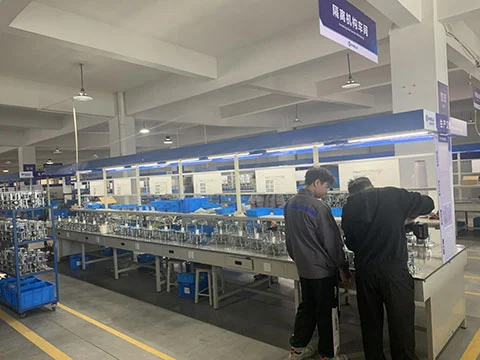

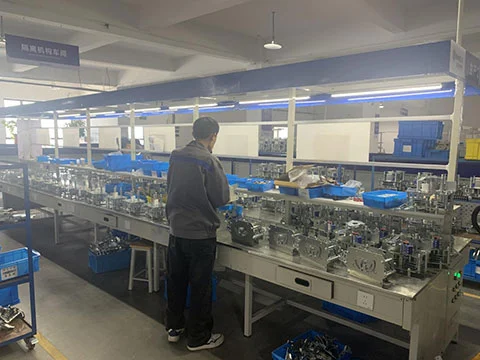

Cotenele International Trade (Wenzhou) Co., Ltd is a certified China switchgear manufacturer with over 30,000 m² factory, ISO-certified quality system, and over 5 years of experience in MV switchgear production. Customers can purchase directly from factory for competitive prices, OEM/ODM solutions, and full technical support for installation and maintenance.

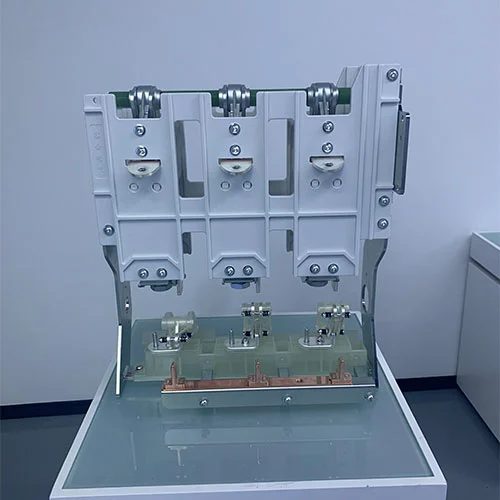

Products Show
