11KV Medium Voltage VCB Circuit Breaker with Isolating Mechanism

The 11KV Medium Voltage VCB Circuit Breaker With Isolating Mechanism play a very important role in the protection and control of power distribution systems. In environmentally friendly switchgear, these operation mechanisms usually worked to reduce environmental impact and maintain good performance. The operation mechanism can ensure that circuit breakers interrupt fault currents promptly and switch operations reliably. Operating mechanisms of circuit breaker asopts durable materials, efficient energy storage methods, which can minimize maintenance and failure rates. Lots of circuit breaker faults are linked to the operating mechanism, made the importance of robust material and regular condition assessment.

Product Highlights

Model and meanings

What is an Operating Mechanism?

The operating mechanism is an assembly for a circuit breaker or disconnector, which generates, stores, and releases mechanical energy to open or close electrical contacts. This operating mechanism consists of an energy storage medium, an actuation system, and interlocking devices ,which is for preventing maloperation.Depending on the design and force requirements, a single mechanism may serve one phase or all three phases of a high-voltage system.Common types include C-tyoe, G-Type, V-type and F-type operation mechanisms. In eco-friendly panels and ring main units, the spring-operated mechanisms are widely used as their simplicity, reliability, and environmental-friendlly.

Working Principle

The operating mechanism is a component of the 11kV Medium Voltage VCB Circuit Breaker with Isolating Mechanism. Its function is to generate, store, and release mechanical energy to open or close the electrical contacts. The operating mechanism consists of an energy storage medium, a drive system, and interlocking devices to prevent misoperation. Depending on the specific design and load requirements, a single operating mechanism can serve a single-phase circuit in a high-voltage system or simultaneously serve all three-phase circuits.

Common types include Type C, Type G, Type V, and Type F operating mechanisms. In environmentally friendly switchgear and ring main units, spring operating mechanisms are widely used due to their simple structure, reliable operation, and environmental friendliness.

Operating Instructions - 11KV Medium Voltage VCB Circuit Breaker With Isolating Mechanism

1. Energy Storage Operation

1.Secure the operating mechanism onto the switchgear cabinet.

2.Attach the dedicated handle onto the operating shaft at the lower right side of the mechanism.

3.Rotate the handle clockwise until an audible "click" is heard. This indicates:
The energy storage indicator shaft has fully activated the micro-switch.
Energy storage is complete.

4.During electrical operation, the mechanism automatically stores energy upon power-up.

5.After energy storage, the motor circuit disconnects, preserving the stored energy until the system releases it to close the circuit.

6.Important: Ensure secondary circuits are correctly connected and error-free before operation.

2. Closing Operation

Manual Operation:

1.Press the green button to instantly release the stored closing energy.

2.The mechanism drives the circuit breaker contacts to fully close the main circuit.

Electrical Operation:

1.Energize the closing solenoid coil.

2.The solenoid releases the stored energy, driving the contacts closed.

3.During this process, the opening spring begins recharging.

4.Safety Note: Re-closing is prevented by the anti-maloperation interlock until the system is ready.

3. Opening Operation

Manual Operation:

1.Press the red button to release the stored opening energy.

2.The mechanism drives the circuit breaker contacts to open the main circuit.

Electrical Operation:

1.Energize the opening solenoid coil.

2.The solenoid releases energy promptly, ensuring rapid contact separation.

3.The operating mechanism completes the main circuit opening reliably.

4. Safety and Maintenance Tips

These procedures ensure safe, reliable switching while maintaining interlocks and automatic reclosing integrity.

Regular testing is recommended using standard circuit breaker analyzers.

Inspect energy storage springs, interlocks, and lubricate moving parts every 6–12 months.

Always follow manufacturer guidelines to prevent maloperation or system damage.

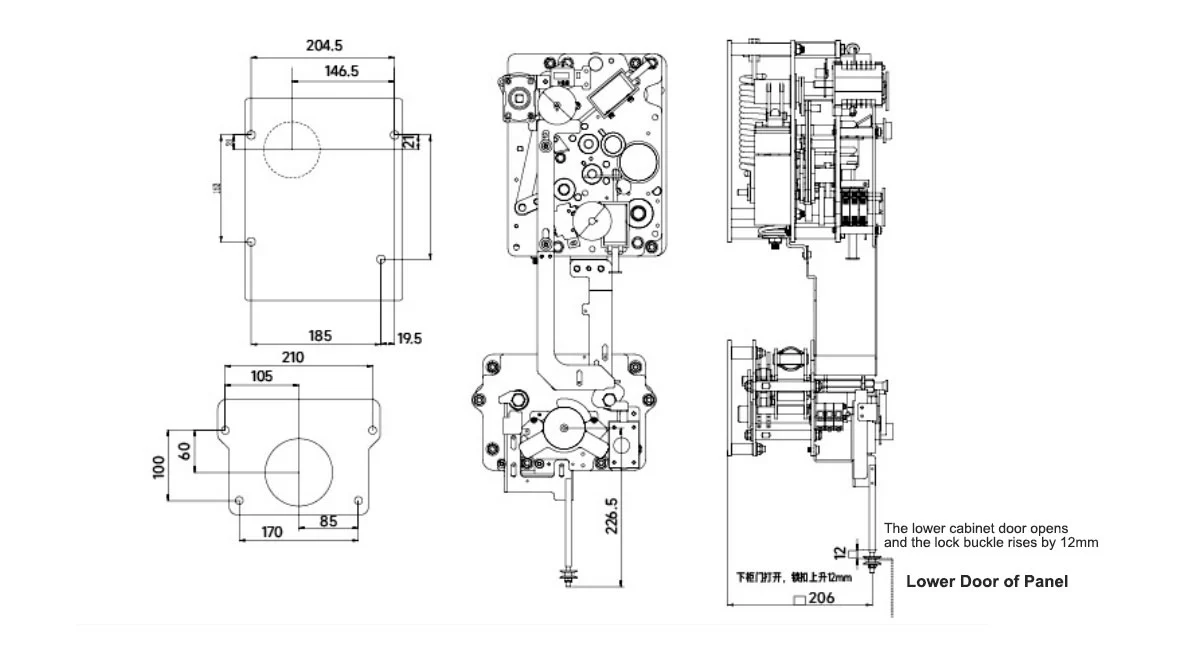

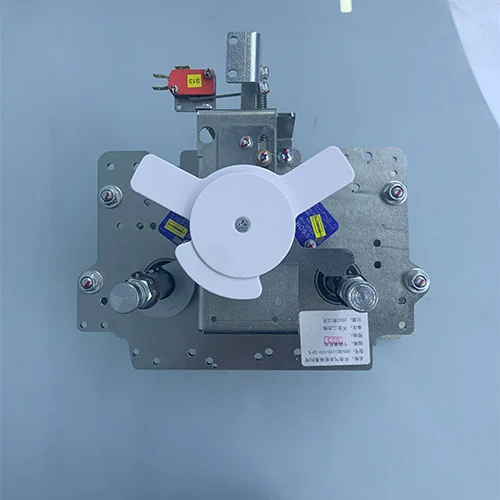

Appearance and Dimension

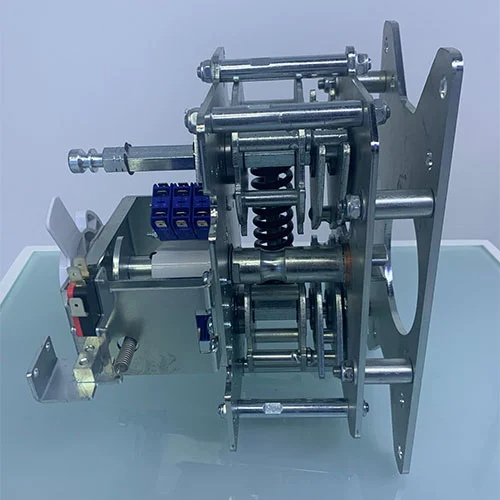

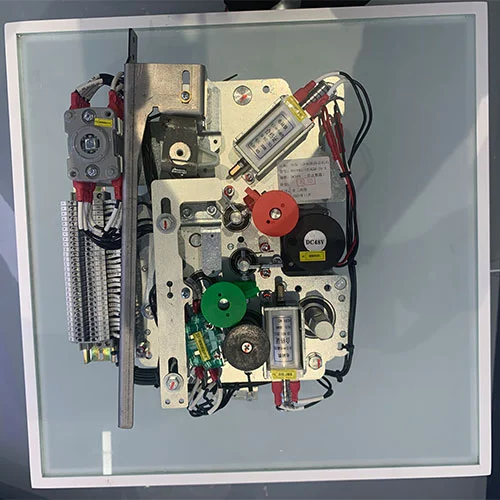

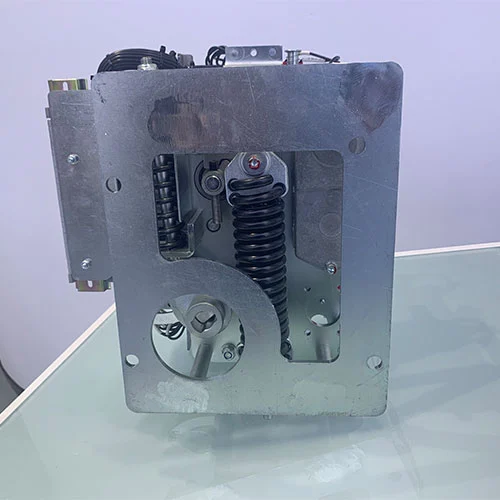

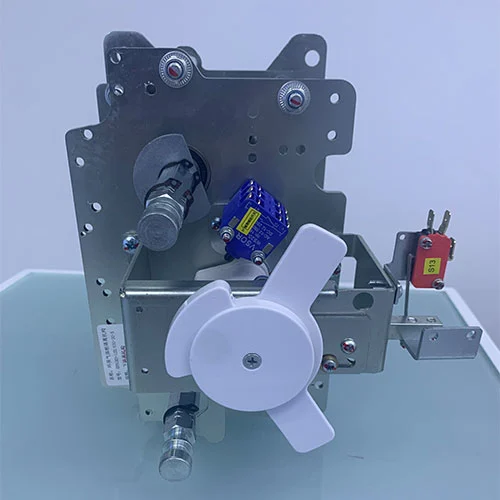

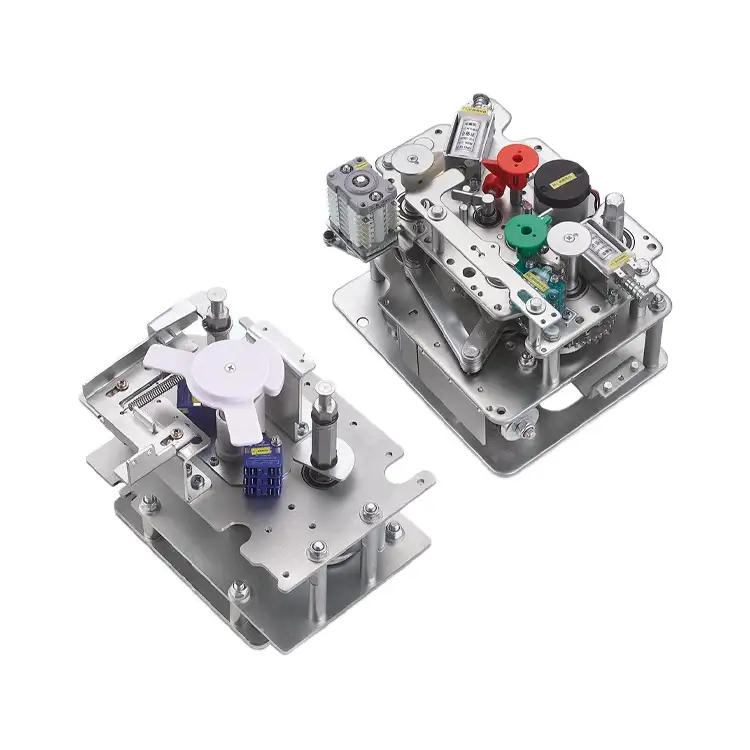

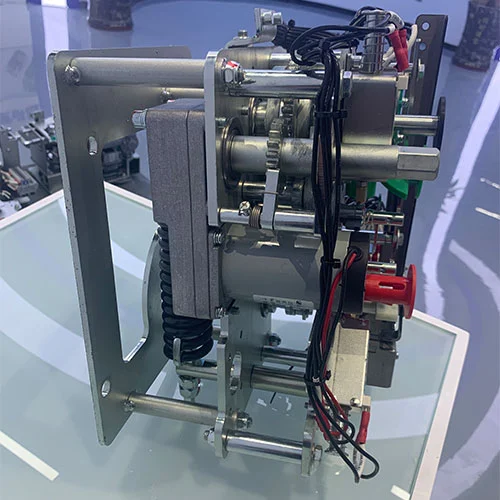

Products Show

FAQ

Q1: What is the mechanical life of the 11kV Medium Voltage VCB Circuit Breaker with Isolating Mechanism?

A1: With proper maintenance, the mechanical life can exceed 10, 000 cycles.

Q2: Can this product be customized?

A2: Yes, we can provide OEM/ODM services according to specific voltage levels or environmental requirements.

Q3: Is it suitable for environmentally friendly switchgear?

A3: Of course. This product is widely used in sustainability-focused applications such as GIS, RMU, and air-insulated switchgear.

Q4: Which standards does it comply with?

A4: GB1984-2014 and GB/T1985-2023.

Q5: How often should maintenance be performed?

A5: Maintenance is recommended every 6-12 months, including energy storage checks, interlock checks, and lubrication.

Safety and Maintenance

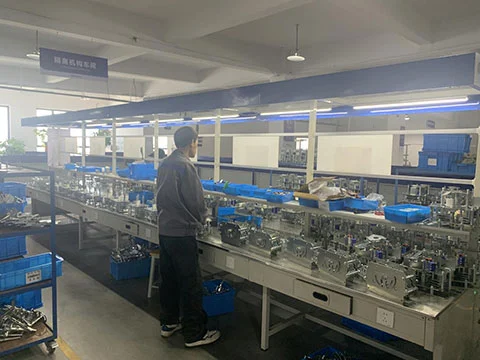

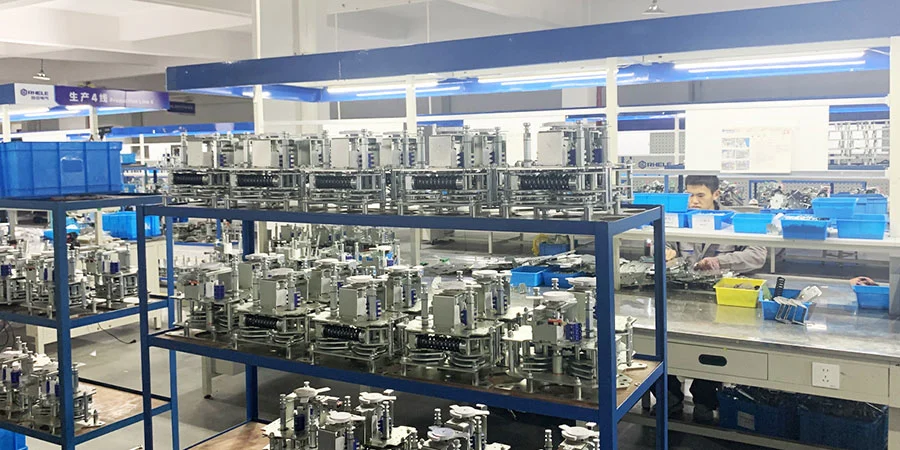

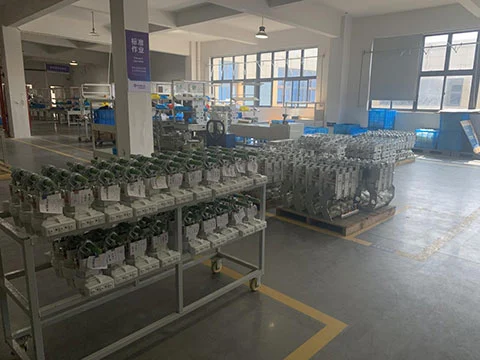

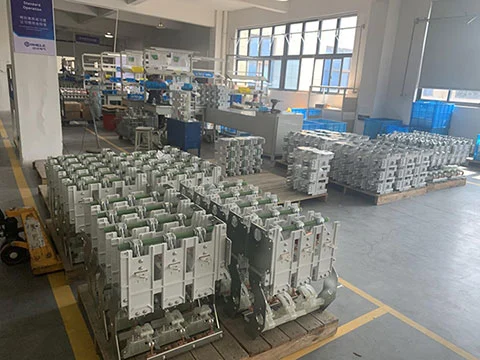

Cotenele’s factory provides comprehensive testing and maintenance support. All mechanisms are inspected before shipment and come with technical guidance from our factory engineers to ensure safe and reliable operation.
