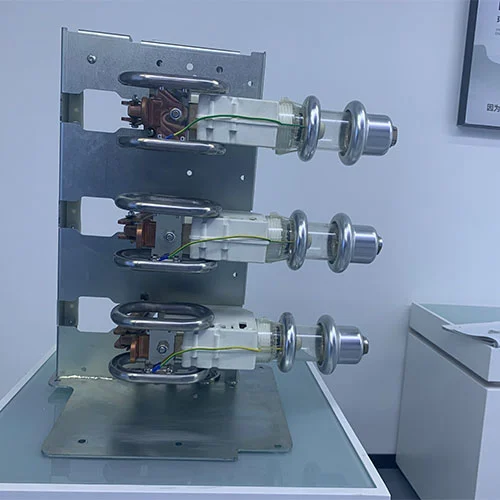

33KV Indoor Medium Voltage Load Break Switch

In the power distribution system, we not only need reliability and safety but also need environmental responsibility.The 33KV Indoor Medium Voltage Load Break Switch is a very important component in this field, particularly for the eco-friendly switchgear.These load break switches are used for efficient and safe circuit interruption in medium voltage systems, they are very important for power control and protection. These load break switcher have advanced, environmentally conscious arc-quenching technologies, and have compact, durable features, Today,the load break switches are widely used for sustainable power management in industrial, commercial, and utility applications, complies with global trends of green electrical infrastructure.

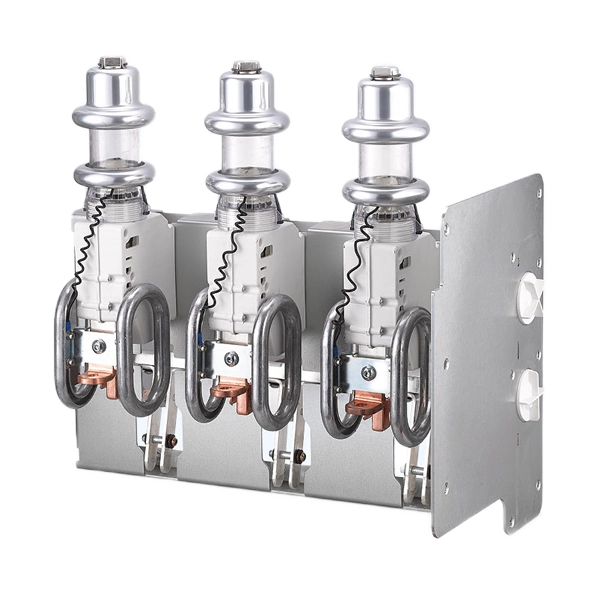

Product Model

What is a Load Break Switch?

A Load 33KV Indoor Medium Voltage Load Break Switch is a electrical switching device which usually is used to make, carry, and break currents under normal circuit conditions. The most important item is that it can also carry currents for a specified duration under abnormal conditions, such as short circuits, often combined with fuses to use. The load break switch primary function is to safely isolate and de-energize sections of a medium voltage grid for maintenance or configuration changes.The difference with the circuit breakers which used for interrupting high fault currents, the LBS is used for reliable interruption of load currents (the normal operating current). The load break switch is a important component in Ring Main Units (RMUs) and indoor switchgear for power distribution system, which can ensure operational flexibility and protection.

What is the classification of Load Break Switches

The Load Break Switches are generally classified based on the medium used for insulation and arc extinction:

Vacuum Load Break Switch: The insulation and arc extinction medium is the vacuum medium. When contacts separate, the arc is extinguished rapidly. This type insulation and arc extinction medium offers excellent arc-quenching performance, and these load break switches have the features of high mechanical endurance, minimal maintenance, and is environmentally friendly.

SF6 Load Break Switch: The insulation and arc extinction medium of this type load break switch is sulfur hexafluoride (SF6) gas. SF6 gas has high dielectric strength which is suitable for very compact design, and these type load break switches have large beneficial in higher voltage applications. The sf6 load break switch adapts sealed-for-life design to minimize gas handling.

Air Load Break Switch: The air load break switch uses ambient air as the insulating and arc extinction medium, usually this type of load break switch equips with a spring-assisted mechanism to quickly stretch and cool the arc. This insulation and arc extinction medium is a robust, cost-effective, and reliable and it is suitable for the general compact indoor switchgear.

The choice of the type of the load break switch is based on the voltage level, required interrupting capacity, environmental considerations, and space limitations within the switchgear.

Application Scope of Vacuum Circuit Breakers

Technical Parameters

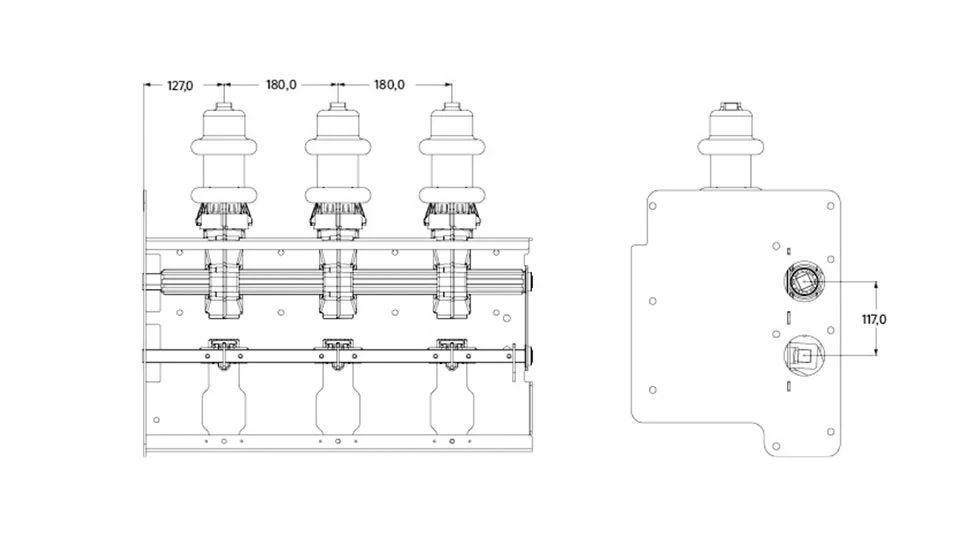

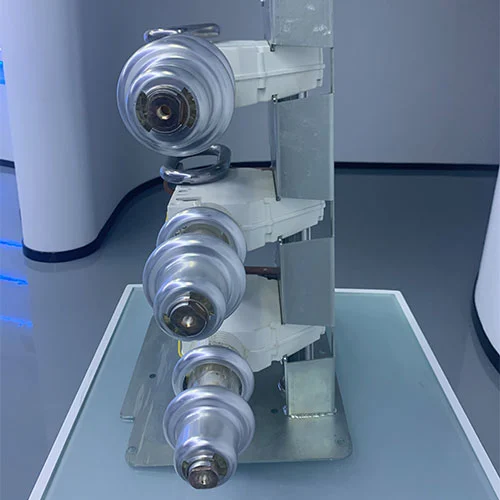

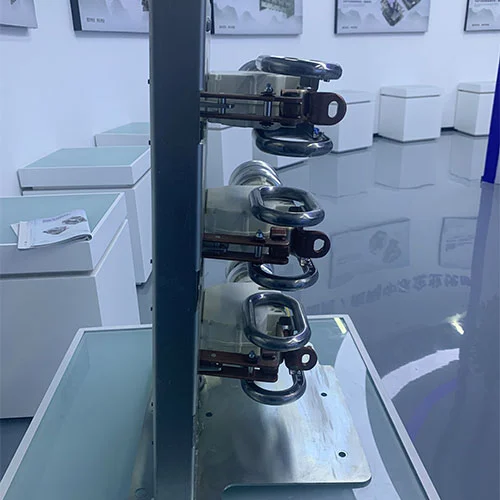

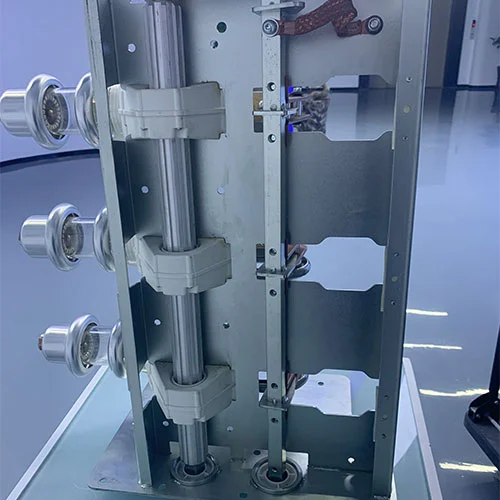

Appearance and Dimension

Applications

The 33kV Indoor Medium Voltage Load Break Switch is suitable for a wide range of industries and applications, providing customers with safe, reliable, and convenient power management solutions:

1.Industrial and Manufacturing Plants

This load break switch generally used for safe isolation of feeders to electrical equipment, transformers, and capacitor banks, and for ensuring operational continuity and personnel safety when the electrical equipment maintenance.

2.Commercial Complexes and Critical Buildings

In hospitals, data centers, and large offices, they provide secure power segmentation for uninterrupted supply and easy circuit management.

3.Utility and Distribution Networks

They are the core component of indoor substations and RMUs, enabling safe network configuration, fault isolation, and protection of distribution transformers.

4.Renewable Energy Installations

For controlling and isolating circuits in solar PV farms, wind turbine connections, and energy storage system switchgear.

5.Public Infrastructure

The load break switches are usually used for reliable and safe power distribution system in railway traction power supplies, airport terminals, and underground facilities.

Product Characteristics

The KDK-40.5D/630-20 series 33KV Indoor Medium Voltage Load Break Switch for eco-friendly switchgear which manufactured by Contenele have below several key features:

1. Enhanced Safety

This load switch employs high-performance arc-extinguishing technology and a reliable mechanical interlocking system. Some models also offer an optional grounding switch, providing maximum protection for your personnel and equipment, ensuring safer on-site operation.

2. Environmentally Friendly Design

Contenele load switches utilize vacuum technology or sealed SF6 units, effectively reducing environmental impact. They also use environmentally friendly materials, embodying the concept of green power distribution.

3. Compact Structure

The switch's compact size allows for efficient integration into various switchgear panels, saving space and facilitating installation and maintenance.

4. Flexible Operation

Whether you require manual, electric, or pneumatic operation, our load switches offer a variety of automated control solutions to adapt to different application scenarios.

5. High Durability and Low Maintenance

The switch features a precision design and high-quality contacts and mechanical structure, boasting a long electrical and mechanical lifespan while requiring minimal daily maintenance, saving customers time and costs.

6. Integrated Functions

It can typically be combined with protective fuses to interrupt fault currents and can also be paired with sensors for monitoring and smart grid control, improving system reliability.

7. International Standards Certification

The 33KV Indoor Medium Voltage Load Break Switch is manufactured and tested in accordance with major international standards (such as IEC and IEEE) to ensure safety and compatibility in the global market.

FAQ

Q1: What is the main difference between a Load Break Switch and a Circuit Breaker?

A: A Load Break Switch main function is to interrupt normal load currents and provide safe isolation. Usually it not used to interrupt high short-circuit currents on its own (this requires backup fuses). A Circuit Breaker is generally used to interrupt both load and high-magnitude fault currents automatically.

Q2: Which is more environmentally friendly: Vacuum or SF6 LBS?

A: Vacuum circuit breakers are generally is more environmentally friendly as they contain no sf6 gas. and the vacuum is permanently sealed. A SF6 load break switches use minimal gas in sealed, lifetime units, but the vacuum circuit breaker remains the preferred choice for the most eco-conscious applications.

Q3: Can a 33KV Indoor Medium Voltage Load Break Switch be used for transformer protection?

A: Yes, An load break switch is generally used as the primary isolating device for a distribution transformer. When combined with appropriately rated high-voltage fuses (forming a "switch-fuse" combination), the load break switch can provides full protection for the transformer against overload and short-circuit faults.

Q4: Why choose a motor-operated LBS over a manual one?

A: Motorized (electrical) operation of the load break switches can be remote controlled, and the load break switch can be integrated into SCADA systems, smart grids, or operated from a safe distance. So, this situation can enhance the load break switch operational flexibility, safety, and supports automation functions.

Q5: How often does an indoor Load Break Switch require maintenance?

A: Modern, sealed-type LBS units (especially vacuum and sealed SF6) have the features of very long service intervals with minimal maintenance. Primary maintenance generally clues visual inspection, checking mechanical operation, and verifying contact wear, often durating several years under normal operating conditions.
