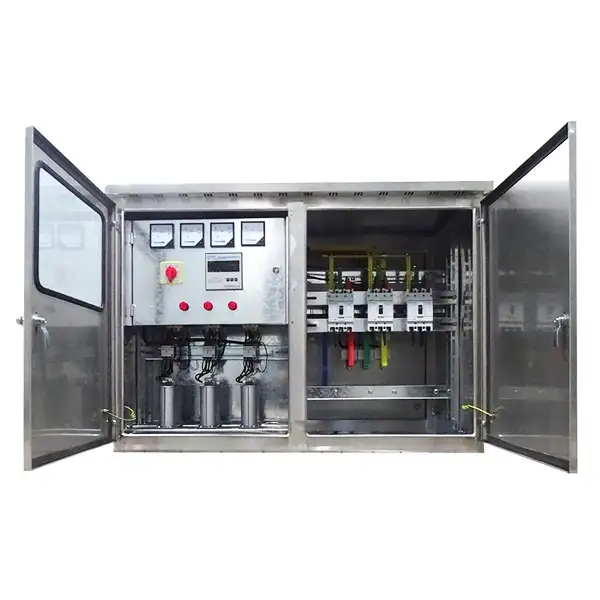

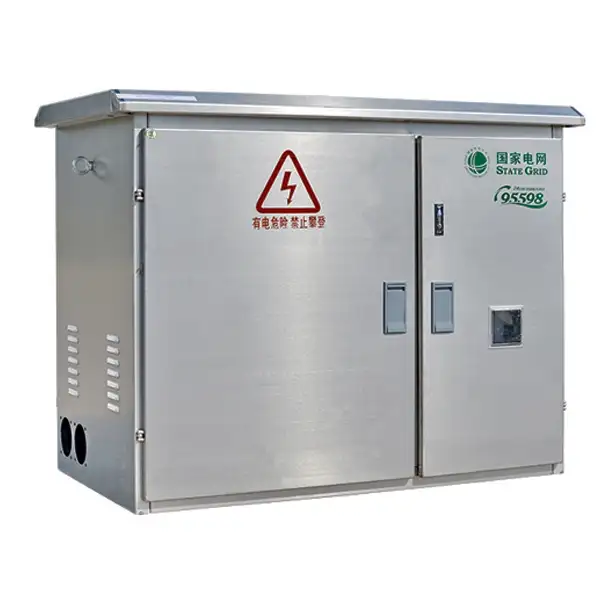

JP Low Voltage Distribution Box LV Switchgear

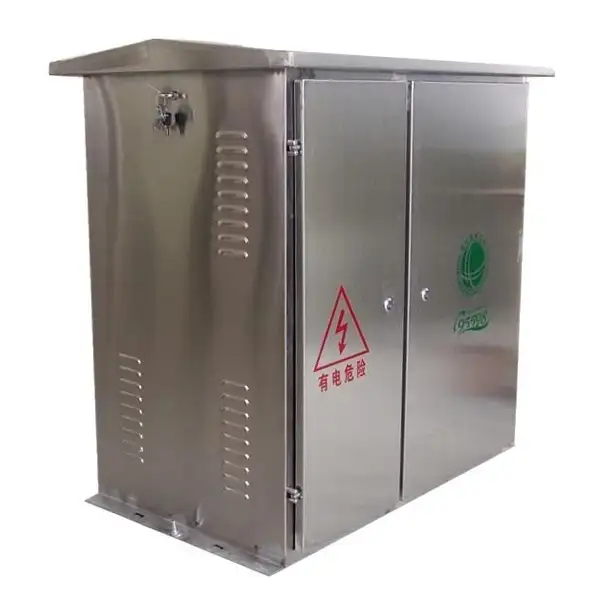

The Cotenel JP Low Voltage Distribution Box LV Switchgear combines multiple functions such as power distribution, control, protection, reactive power compensation, and energy metering, with an optional leakage protection module available upon request. The JP series low-voltage integrated distribution box is manufactured by high-quality 201 or 304 stainless steel with an electrostatic powder‑coated finish, this distribution box resists weathering and reduces visual glare, while The foam door panel is firm and durable, and can keep its shape unchanged for a long time. The padlocks equipped with the JP series low-voltage distribution box enhance anti‑tampering security, and standard side‑mounted lifting rings simplify on‑site installation and handling. This low-voltage distribution box is very suitable for 50Hz AC systems with rated voltages below 0.4kV, it complies with GB7251.1‑1997 and ISO9001 standards. The JP low-voltage distribution box has a compact footprint, is easy to install, and has low maintenance costs, making it ideal for outdoor or rural environments that require high protection levels and reliable long-term performance. It is a Perfect choice for modern low-voltage distribution networks.

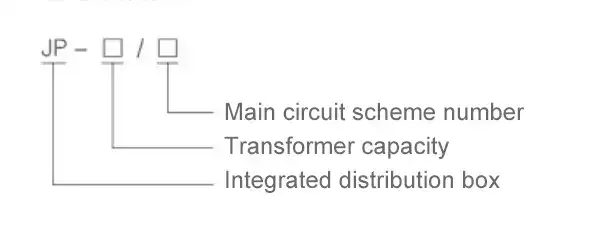

Modle and meanings

Main technical parameters

Working conditions

1. Environmental temperature: -25 ℃+40 ℃;

2. Relative humidity of the air: daily average not exceeding 90%, monthly average not exceeding 90%

3. Altitude: not exceeding 2000m;

4. Install in a place without severe vibration and impact, and without corrosive gases.

What Is JP Low Voltage Distribution Box LV Switchgear?

The core of JP series low-voltage integrated distribution box is structural "integration", which integrates all the functional modules required for the entire power distribution area into a sturdy shell, including:

1. Power distribution: The JP low-voltage distribution box can safely and reliably distribute the electrical energy output by transformers to various branch circuits;

2. Energy metering: JP low-voltage distribution boxes can accurately measure power consumption through built-in metering rooms and current transformers, and usually have tamper proof functions;

3. Protection function: This JP distribution box can provide overload, short circuit, leakage, overvoltage, undervoltage, phase loss, and surge protection to ensure electrical safety; And control and reactive power compensation.

4. Reactive power compensation:The Reactive power compensation function of the JP series low-voltage integrated distribution box is one of the core advantages of JP cabinets, as it can automatically switch capacitor banks according to grid load to compensate for reactive power, significantly improving power factor (up to 0.95), reducing line losses, and improving voltage quality.

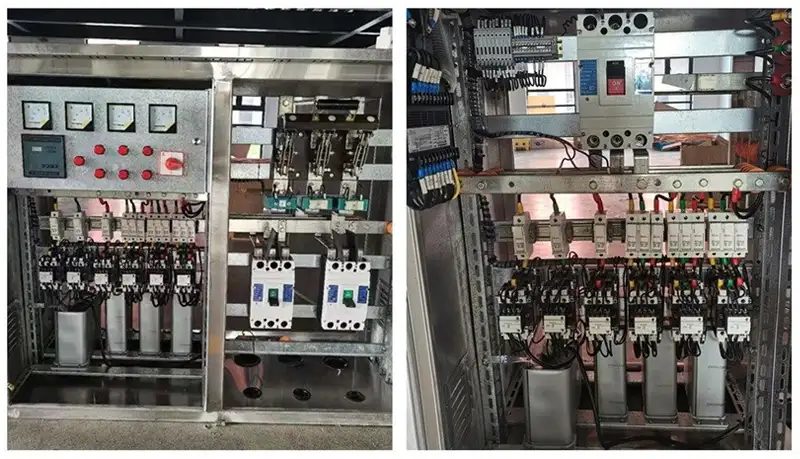

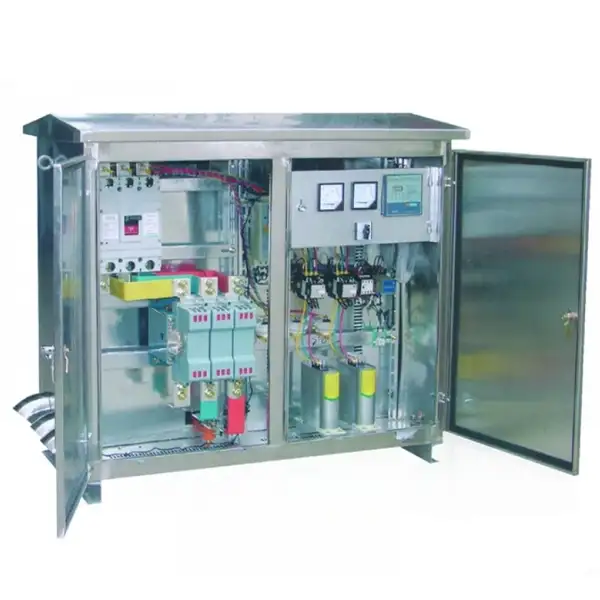

5. Internal Structure and Characteristics

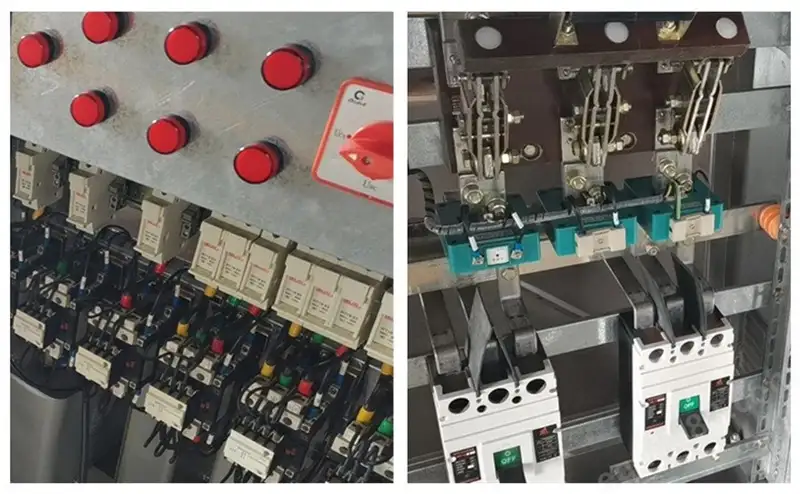

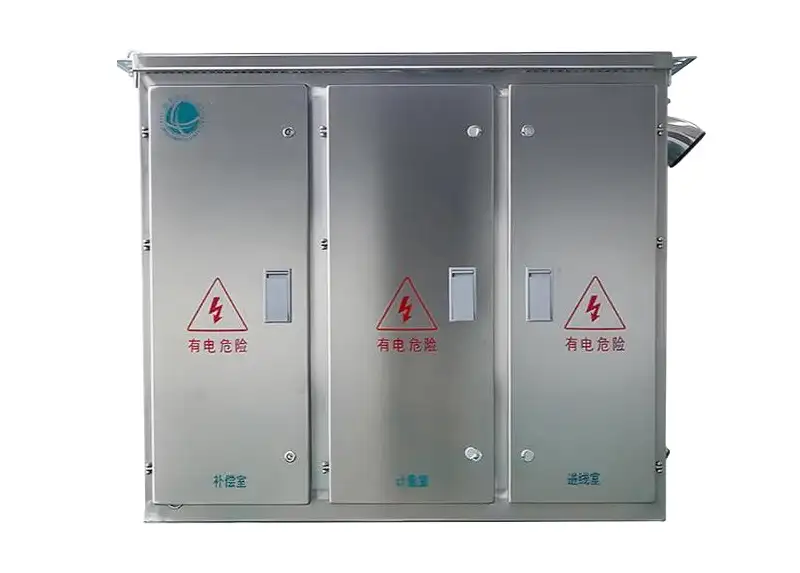

The JP low-voltage distribution box features clear functional zoning, typically divided into a metering compartment, an incoming line compartment, a feeder switch compartment, and a reactive power compensation compartment. This structure features make installation, inspection, and maintenance very convenient. The JP distribution box is specifically for outdoor environments, Its enclosure is usually made of high-quality steel or stainless steel, with a common protection level of IP44 (some models can reach IP65), which can effectively resist rainwater, dust, and electromagnetic interference.The cabinet also comes with dedicated waterproof bends for cable entry and exit. On the intelligence front, new-generation JP cabinets act as the "peripheral nerves" of the smart grid. They integrate internal modules for data acquisition, remote communication (GPRS/fiber optic), and load monitoring. These modules enable the power control center to perform remote telemetry, remote signaling, remote control, and remote adjustment (the "four remote" functions), achieving intelligent grid management.

Typical application Scope Of JP Panels

1. Rural grid renovation: The JP cabinet was originally designed for rural power environments. For example, in a rural grid renovation project in a northern county, after uniformly replacing the old equipment with new JP cabinets, the power factor in the distribution area increased from 0.75 to above 0.95, the average line loss rate decreased by 3 to 5 percentage points, and the rate of low-voltage trip accidents dropped by more than 60%, significantly improving power supply reliability and safety.

2. Urban old community renovation: For aging power distribution facilities in cities that are overwhelmed by growing electricity loads, retrofitting them with JP cabinets that integrate reactive power compensation and intelligent monitoring functions can increase power supply capacity by about 20% without adding new capacity, while effectively solving voltage instability issues.

3. Industrial and mining enterprises and commercial complexes: In factories, street lighting, residential communities, and similar places, JP cabinets not only perform basic power distribution, but their reactive power compensation function can also save a considerable amount on basic electricity charges.

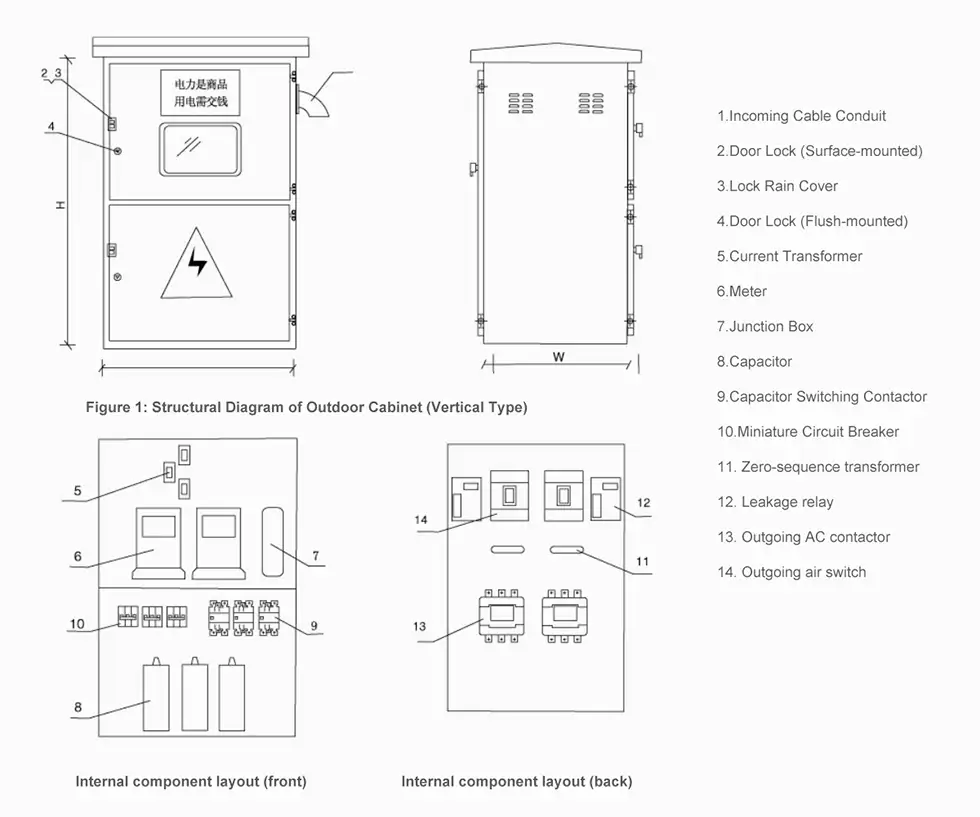

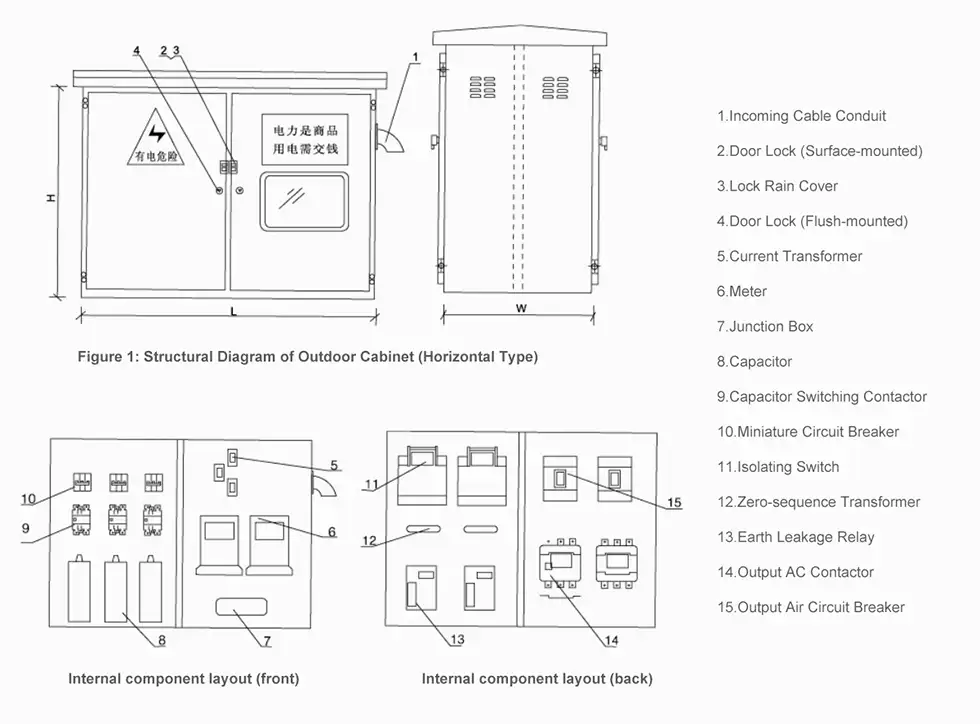

Schematic diagram of box structure and dimensions

Dimensions of horizontal box

Vertical box external dimensions

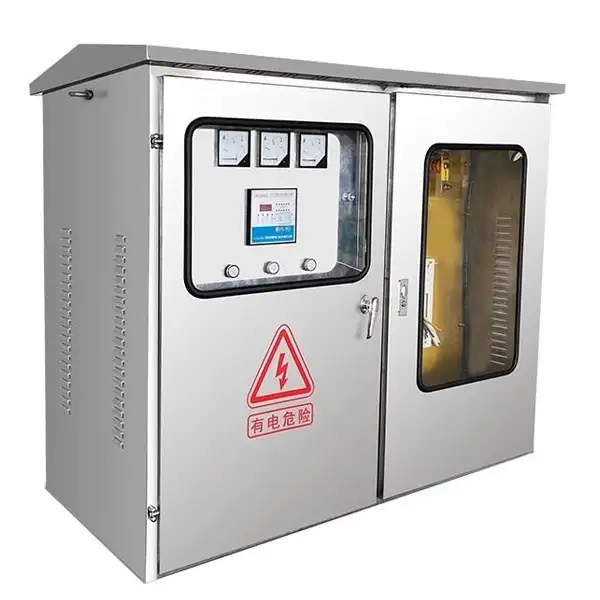

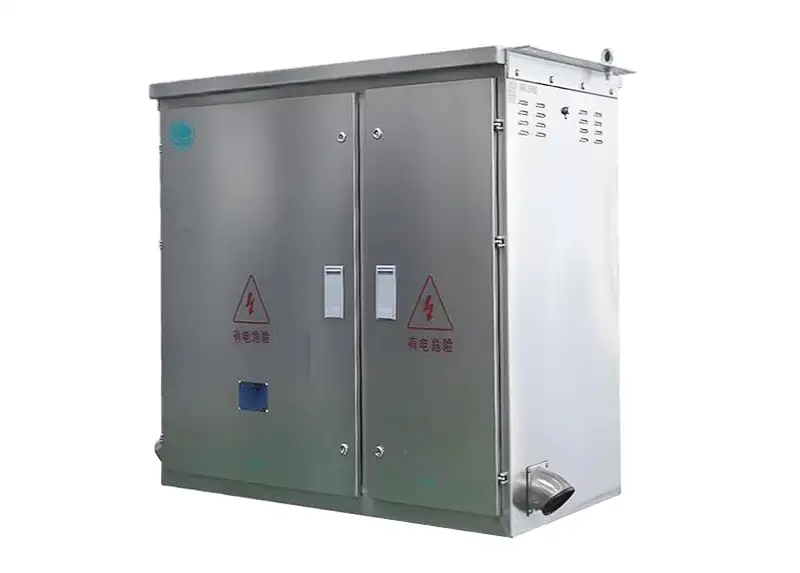

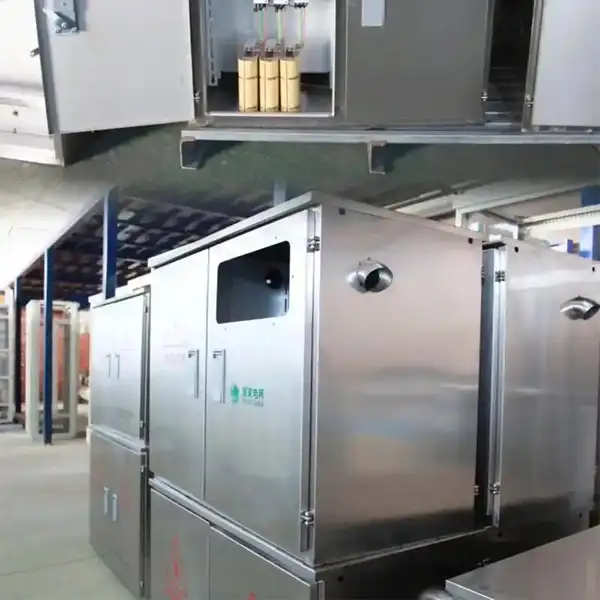

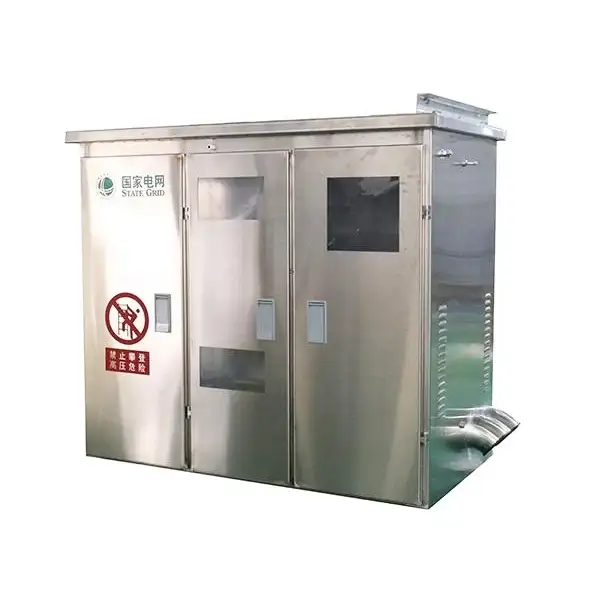

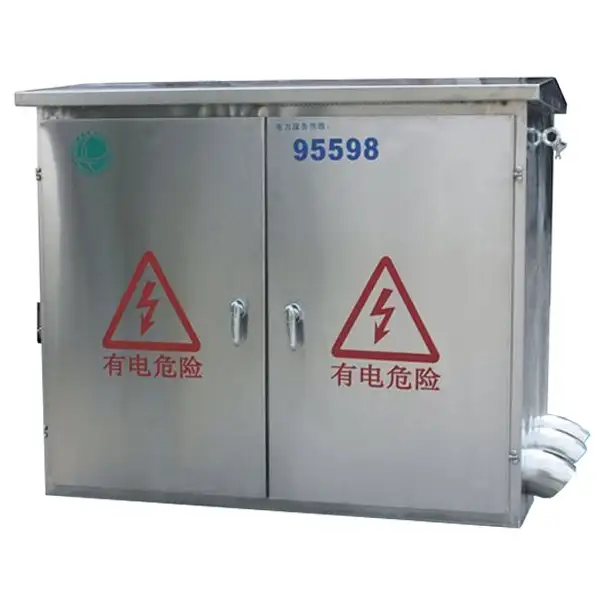

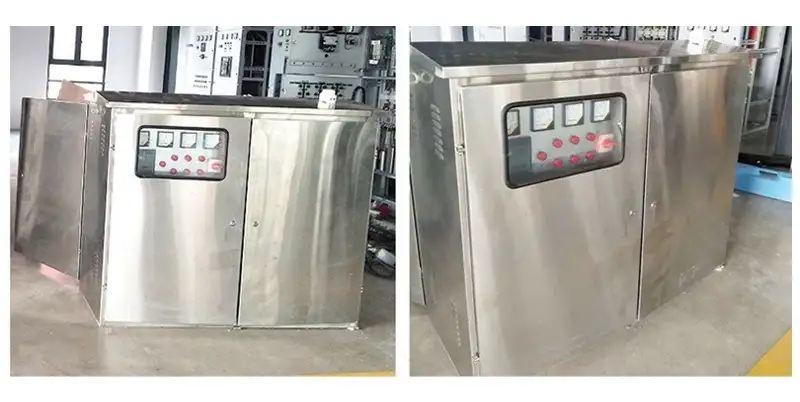

Products show
