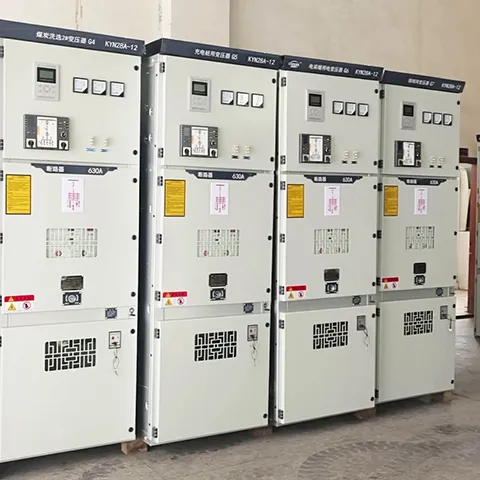

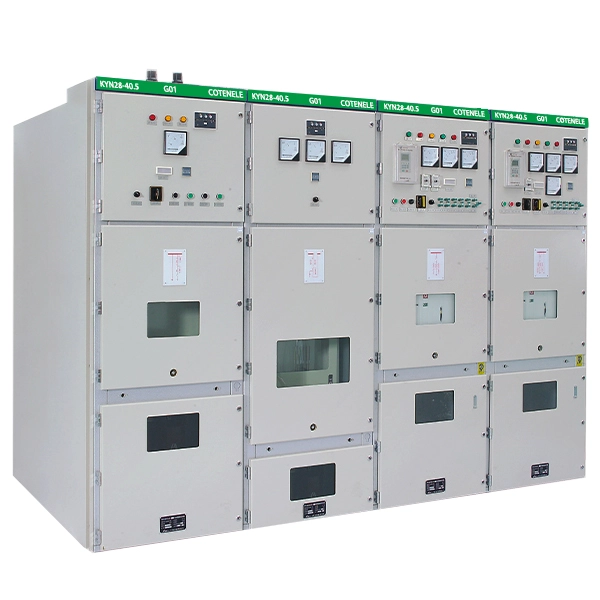

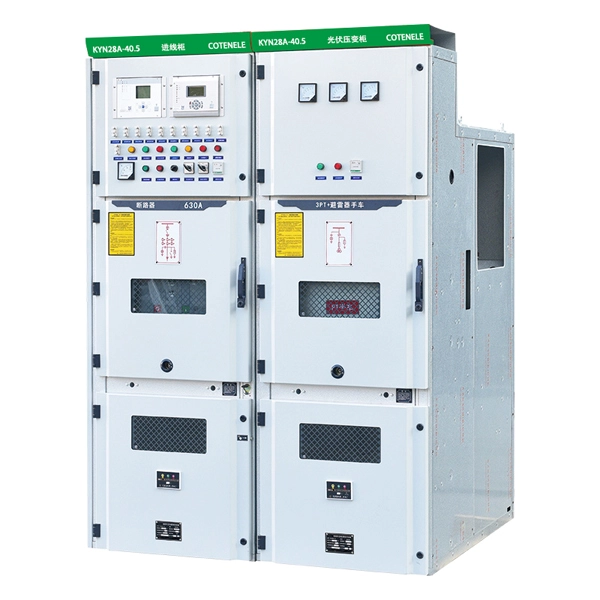

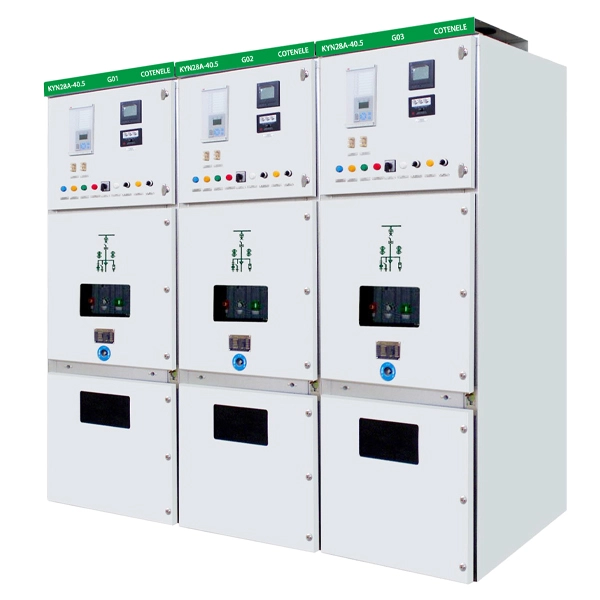

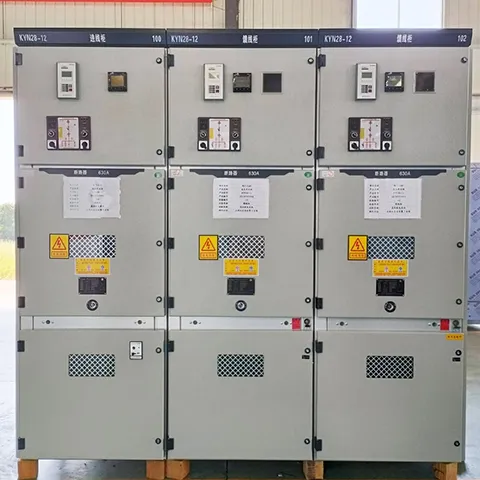

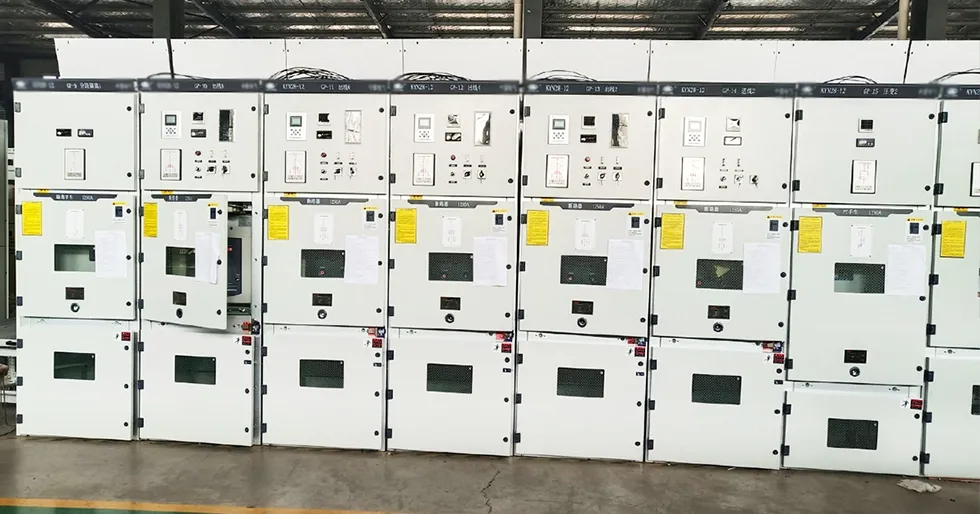

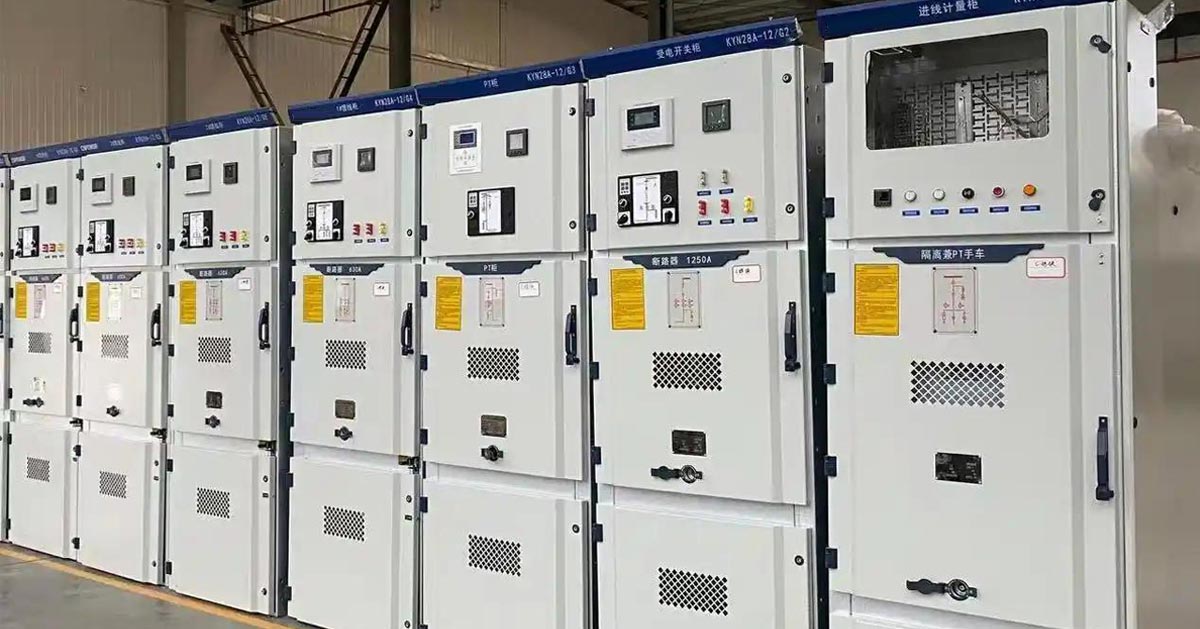

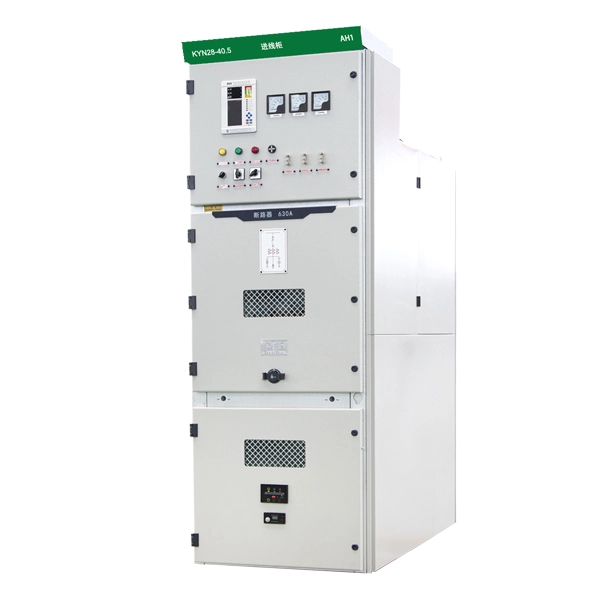

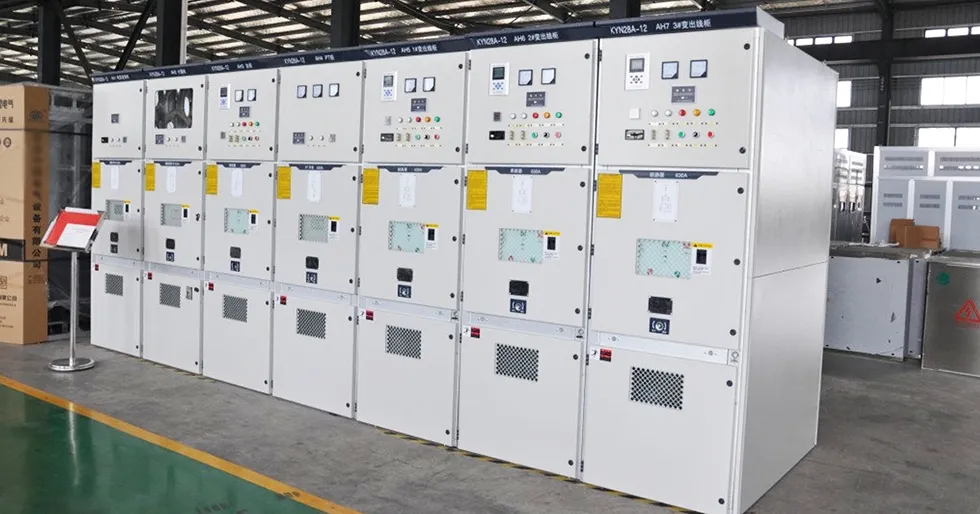

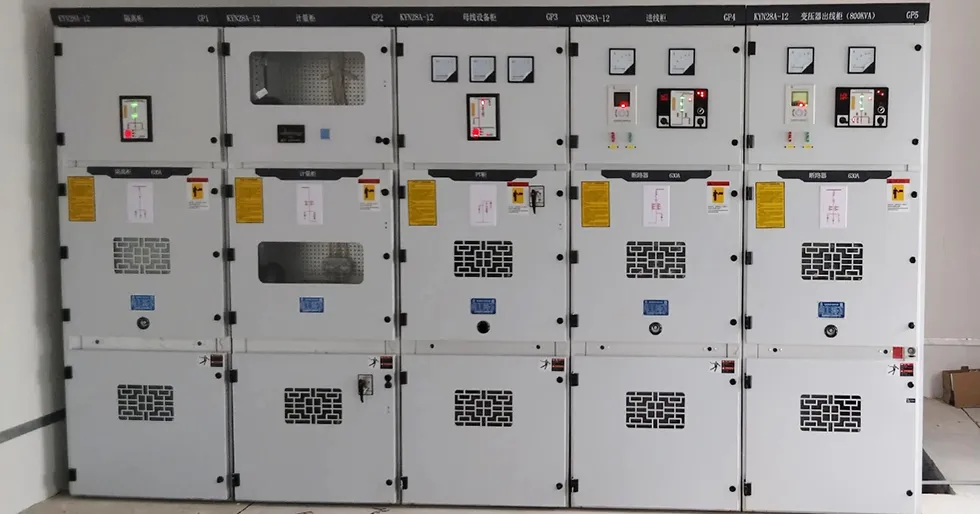

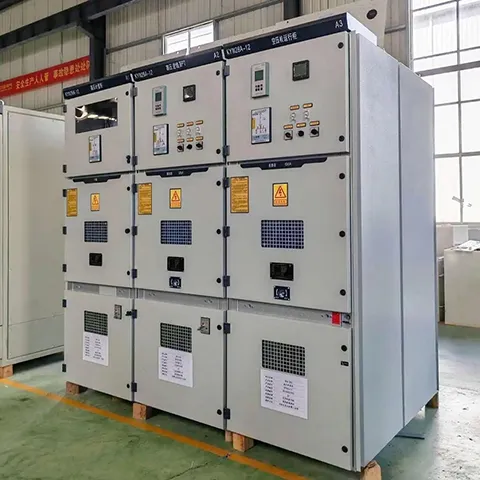

33KV MV Switchgear Medium Voltage Switch Gear
KYN28-40.5 medium-voltage switchgear is a new product developed by Cotenele, with a rated voltage of up to 40.5kv,This KYN28-40.5 type of 33KV MV Switchgear Medium Voltage Switch Gear, is primarily intended for three-phase AC power systems with a rated voltage of 40.5 kV and a frequency of 50 Hz. It is commonly applied in single-busbar and sectionalized busbar arrangements. The product design complies with relevant standards such as IEC 298 and GB3906-2006.
Cotenele has long been committed to innovation and research in medium-voltage switchgear technology. KYN28-40.5 series 33KV MV Switchgear Medium Voltage Switch Gear is a new product of Cotenele witch usually used to meet the distribution requirements of rated voltage 35KV in power plants, substations, industrial and mining enterprises, public institutions and other places,This medium-voltage switchgear is a tpye of Center-mounted withdrawable switchgear,its main insulation adopts a composite insulation structure and fully meets the “five-prevention” safety interlock requirements.
The equipment can be fitted with the manufacturer’s own ZN85 and VTK series vacuum circuit breakers, or alternatively with ABB’s VD4 vacuum circuit breakers.
Model and meanings
Main technical parameters
| Item | Unit | Technical Parameters | |
| Rated voltage | KV | 40.5 | |
| Rated frequency | Hz | 50 | |
| Rated current | A | 1250160020002500 | |
| Power frequency withand voltage | Power-frequency withstand voltage of main circuit for 1 minute | KV | 95 KV (118 KV across the isolating gap for special requirements) |
| Power-frequency withstand voltage of auxiliary and control circuits | V | 2000 | |
| Lightning impulse withstand voltage | KV | 185 KV (215 KV across the isolating gap for special requirements) | |
| Rated breaking current (RMS) | KA | 2,531.5 | |
| Rated making current (peak) | KA | 63、80 | |
| Rated dynamic withstand current (peak) | KA | 63、80 | |
| Rated short-time withstand current for 4 seconds (RMS) | KA | 2,531.5 | |
| Rated voltage of auxiliary and control circuits | V | -110,-220,～110,～220 | |
| Degree of protection | IP3X for enclosure; IP2X between compartments and when the circuit breaker compartment door is open | ||
What are the products characteristics of KYN28-40.5 switchgear?
1. Metal-clad and modular compartments: The enclosure of 33KV MV Switchgear Medium Voltage Switch Gear is made of aluzinc steel plate and internal space divided into independent compartments, such as circuit breaker compartment, busbar compartment, cable compartment, and relay/instrument compartment. This structure achieves the "LSC2B" standard, which means that when a fault occurs or maintenance is carried out in one compartment, the operation of other compartments remains unaffected.

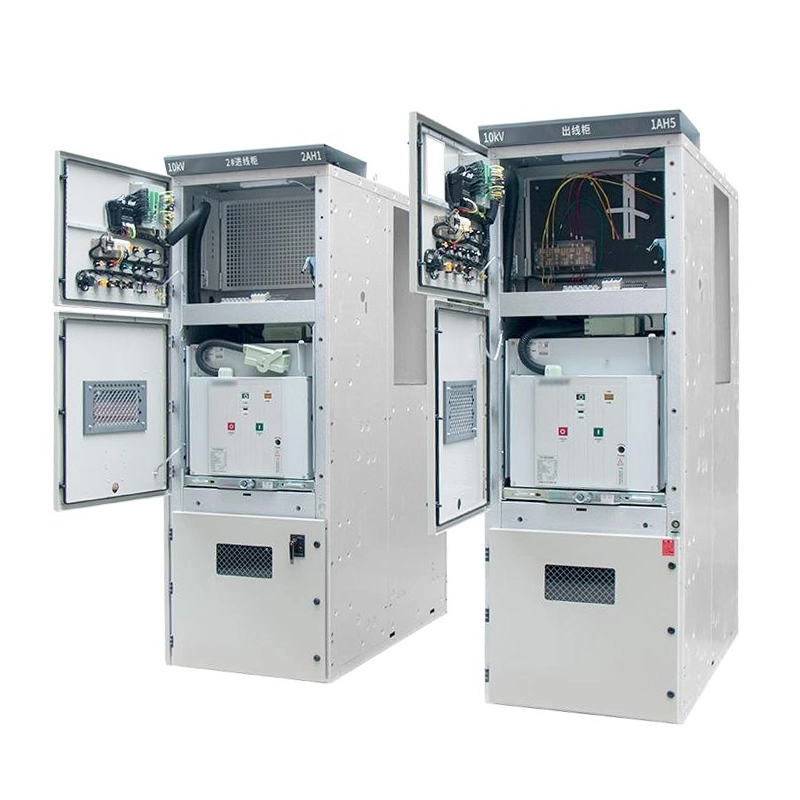

2. "Center-mounted" drawout circuit breaker arrangement: The core components such as vacuum circuit breaker, isolating switch, are installed on a removable truck (drawout unit). when it need maintenance, the faulty truck can be completely withdrawn and replaced with a spare one to quickly restore power supply, significantly shortening outage time.

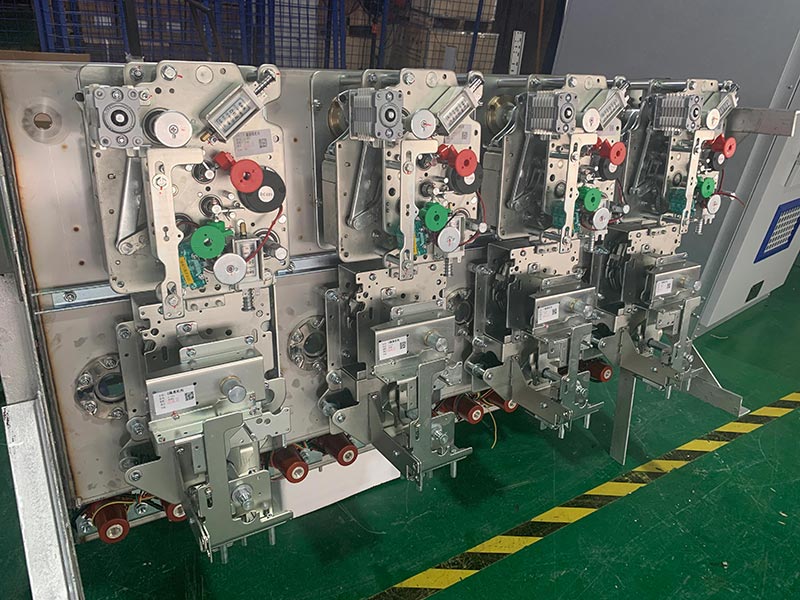

3. "Five-prevention" mechanical interlocking: Through mandatory mechanical interlocking, it ensures that the next operation can only be performed under specific conditions. This function can effectively prevent such maloperations as incorrect closing or opening of the circuit breaker, moving the truck in or out under load, closing the earthing switch when the circuit is live, entering a live compartment by mistake, and closing the breaker with the earthing switch closed. This can ensure the safety of personnel and equipment.
4. Top pressure relief channel: when an internal arc fault of the switchgear occured, the high-temperature and high-pressure gases are directed to release through the top channel, minimizing hazards and protecting operation and maintenance personnel.
Structure and dimensions

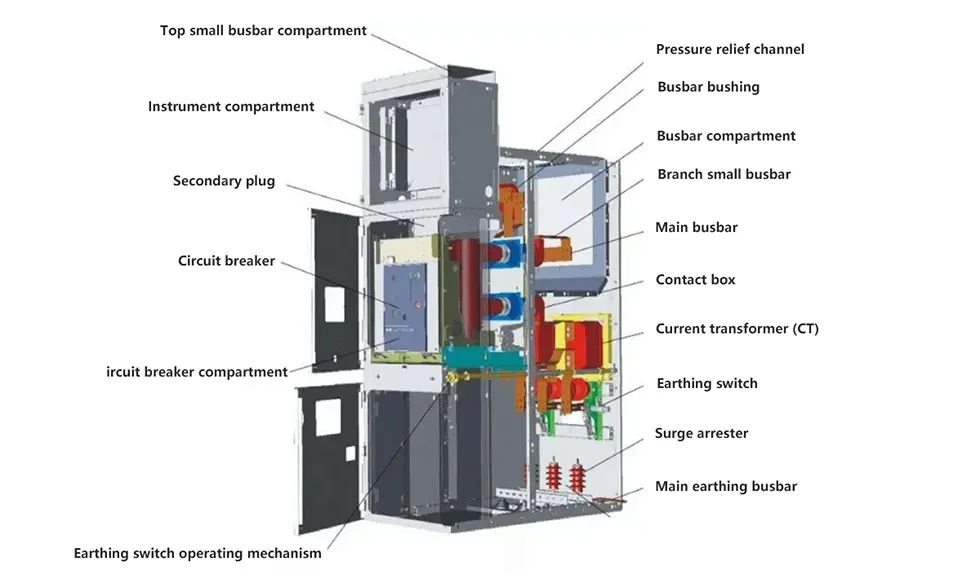

Structure diagram of the KYN28
| Configure circuit breaker | ZN85(Or VTK-40.5) | ZN85(Or VTK-40.5) |
| Width(mm) | 1400 | 1200 |
| Height(mm) | 2650 | 2650 |
| Depth(mm) | 2800 | 2600 |
| Weight(kg) | 1500 | 1400 |
What is the difference between KYN28-40.5 and KYN61-40.5?
KYN61-40.5:KYN61-40.5 switchgear is larger in size, mainly characterized by high current and high parameters, designed specifically for 40.5kV voltage levels, It adopts a floor-mounted (drawout) truck structure and is engineered to carry high currents and high breaking capacities. It serves as a core distribution device for large, critical power nodes.
KYN28-40.5: KYN28-40.5 series 33KV MV Switchgear Medium Voltage Switch Gear has a more compact structure and is more widely used.It has the iconic center-mounted drawout truck structure of the KYN28 series, has the features of compactness and flexibility. It is a common choice for conventional distribution scenarios.
| Item | KYN61-40.5 | KYN28-40.5 |
| Circuit breaker truck type | Floor-mounted:Larger and heavier truck,placed on floor rails at the bottom of the panel | Center-mounted:Compact truck installed in the middle height of the panel,easier to operate |
| Dimensions and weight | Larger dimensions and weight.Typical Dimensions:1400mm(W), 2800mm(D).Self-weight approx.1500kg | More compact Some data indicates depth up to 2800mm; slightly lighter than KYN61 |
| Rated current range | Wider,typically 630A to 4000A | Narrower,typically 630A to 3150A (but can be customized up to 4000A) |
| Breaking/withstand capacity | Higher,typically 25kA to 40kA,peak withstand current up to 100kA | Relatively lower,typically 20kA to 31.5kA |
| Application scope | More specialized,often used in critical positions such as incomers or bus couplers in large industrial plants,power plants,and substations | More widespread,a mainstream equipment for 10kV and 35kV distribution networks |
| Typical scenario features | Suitable for applications requiring high current and high breaking capacity | Suitable for conventional distribution scenarios with higher demand on compactness, flexibility and economy |

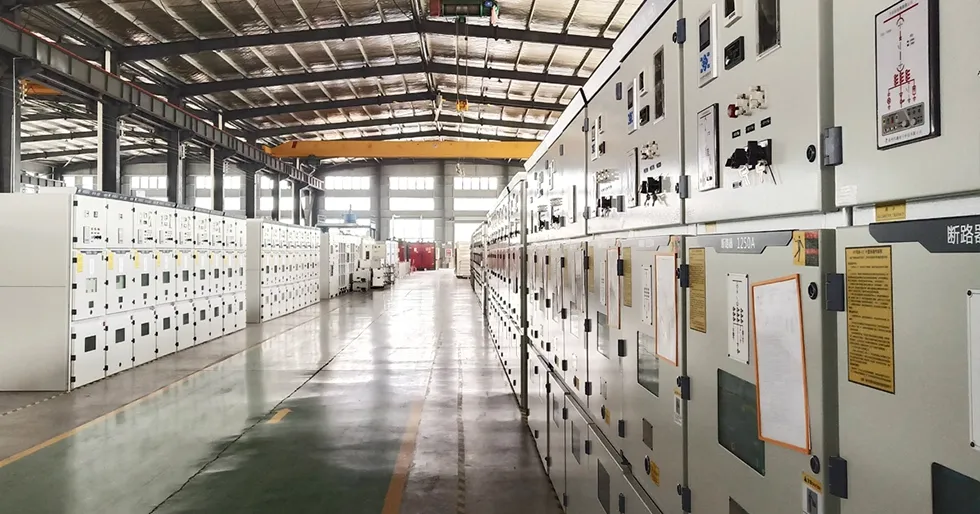

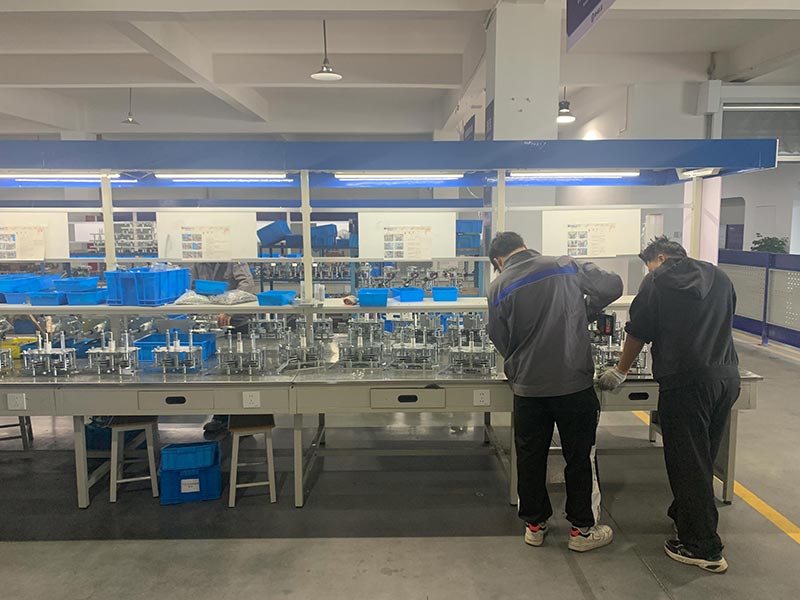

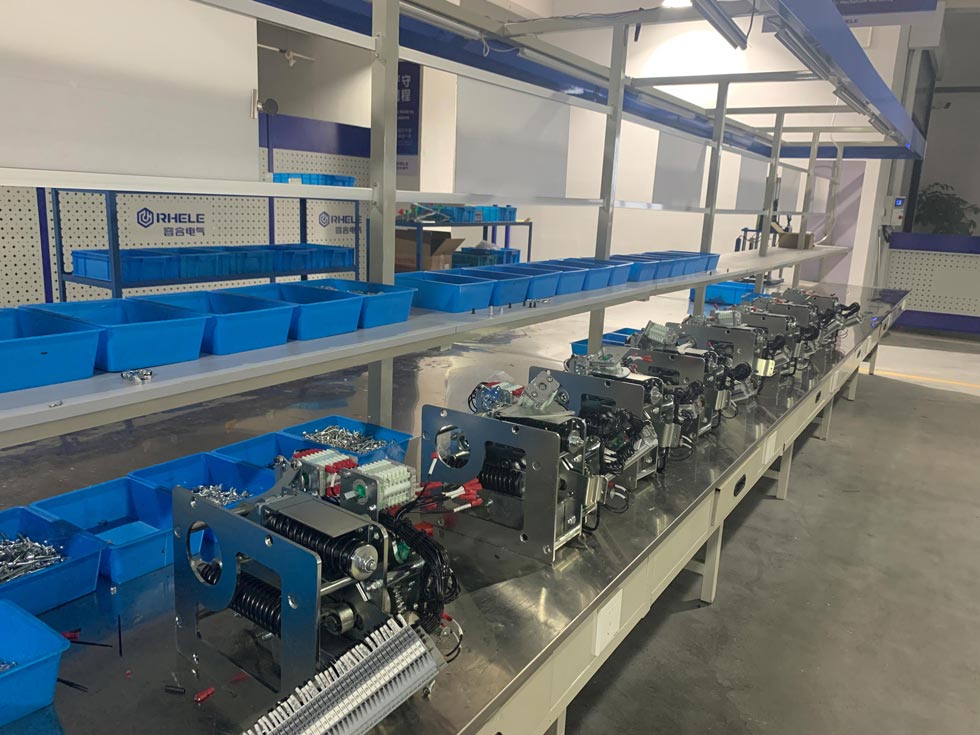

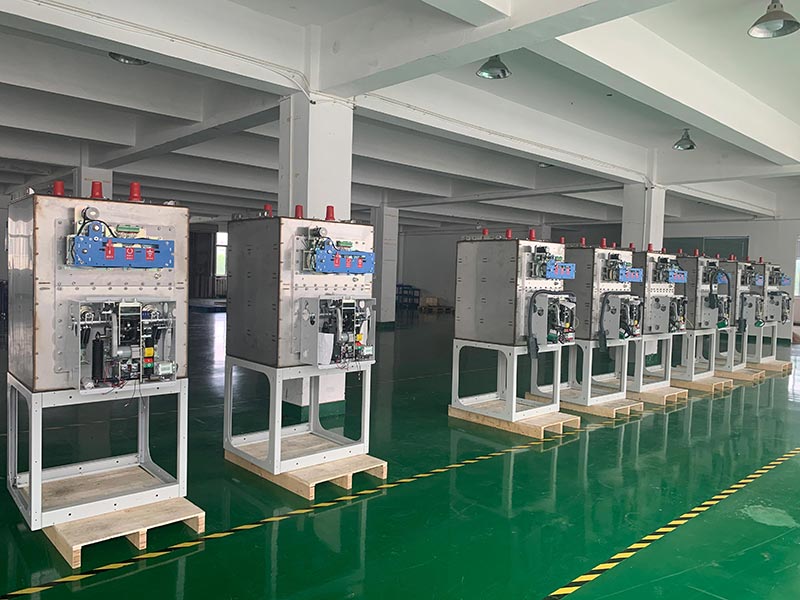

Our Factory
