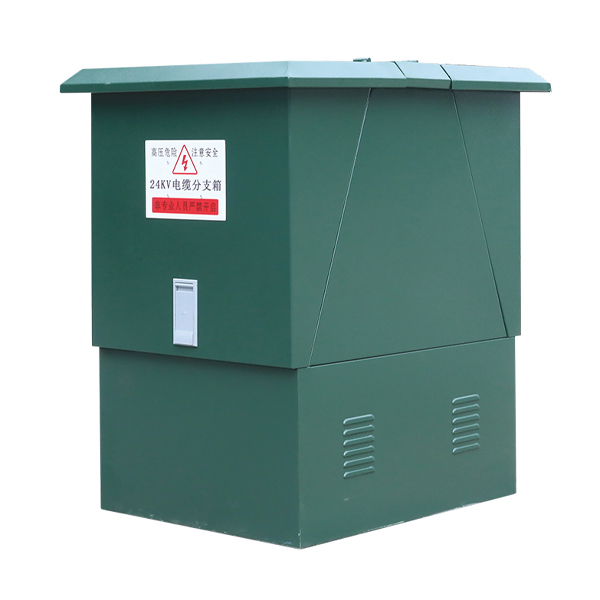

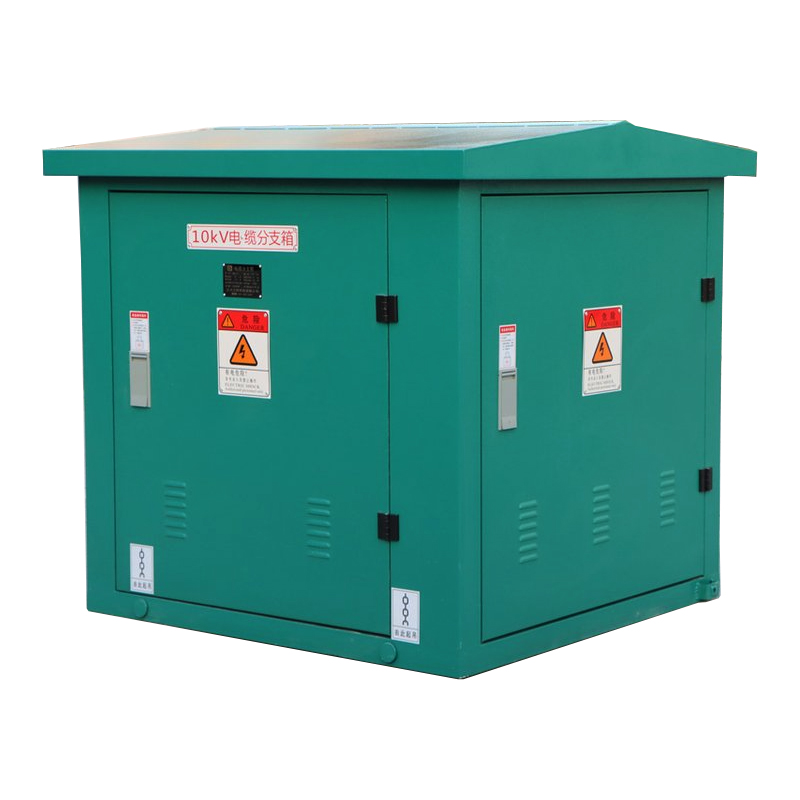

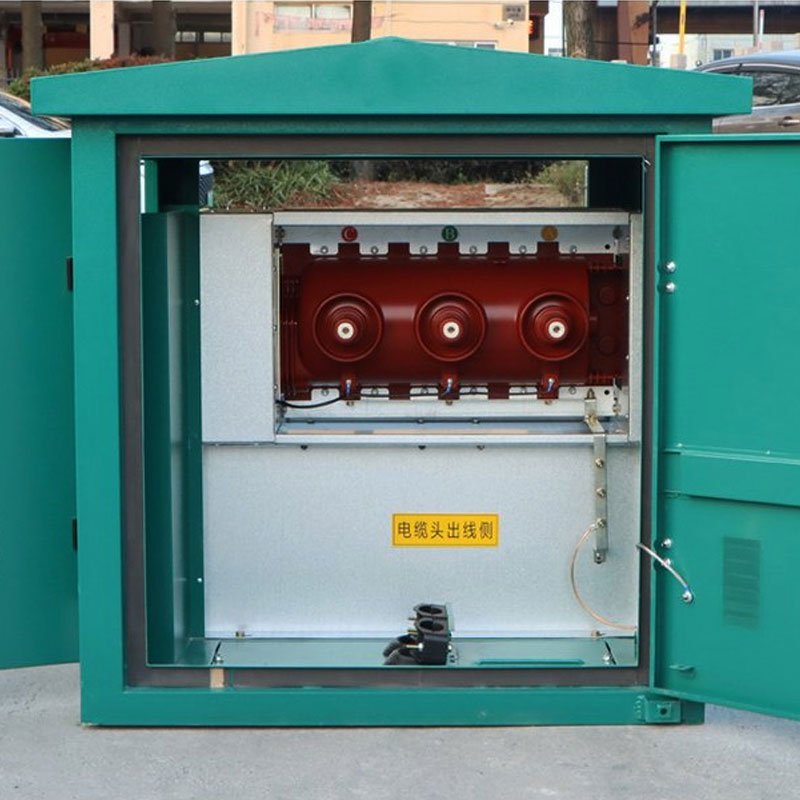

22KV Wiring Box Junction Cable Distribution Panel

The 22KV Wiring Box Junction Cable Distribution Panel manufactured by Cotenele is a highly reliable, fully-insulated, fully-sealed outdoor distribution device,addressing issues of large land occupation and low safety in traditional overhead lines, enabling “underground cabling” and “oil-free transformation” of power grids.This 24kV Cable Branch Box is an outdoor mediumh-voltage distribution device with a rated voltage of 24kV and rated frequency of 50Hz. It is installed at nodes or branching points of power cables to distribute one incoming feeder to multiple outgoing feeders, commonly used in ring-network or radial distribution systems.

Structure and Components

The Cotenele Box Junction Cable Distribution Panel enclosure structure is compact, sturdy and durable, includes the following two parts:

1. Enclosure

• Material: The shell material of 22KV Wiring Box is usually made of stainless steel, cold-rolled steel powder coating or galvanized steel, which has excellent corrosion resistance and mechanical impact resistance.
• Protection Rating: The shell material of 22KV Junction Cable Distribution Panel  is usually made of stainless steel, cold-rolled steel powder coating or galvanized steel, which has excellent corrosion resistance and mechanical impact resistance.
• Protection Rating: The enclosure protection grade of the Cable Distribution Panel typically reaches IP33 or higher (e.g., IP34D) based on the latest standards,can provide rain, dust, and corrosion protection for harsh outdoor environments.
• Structural Design: This Junction Cable Distribution Panel mechanical strength is high enough and it is equipped with a rainproof groove and sealing gasket door, internal cable clamps, and grounding terminals.

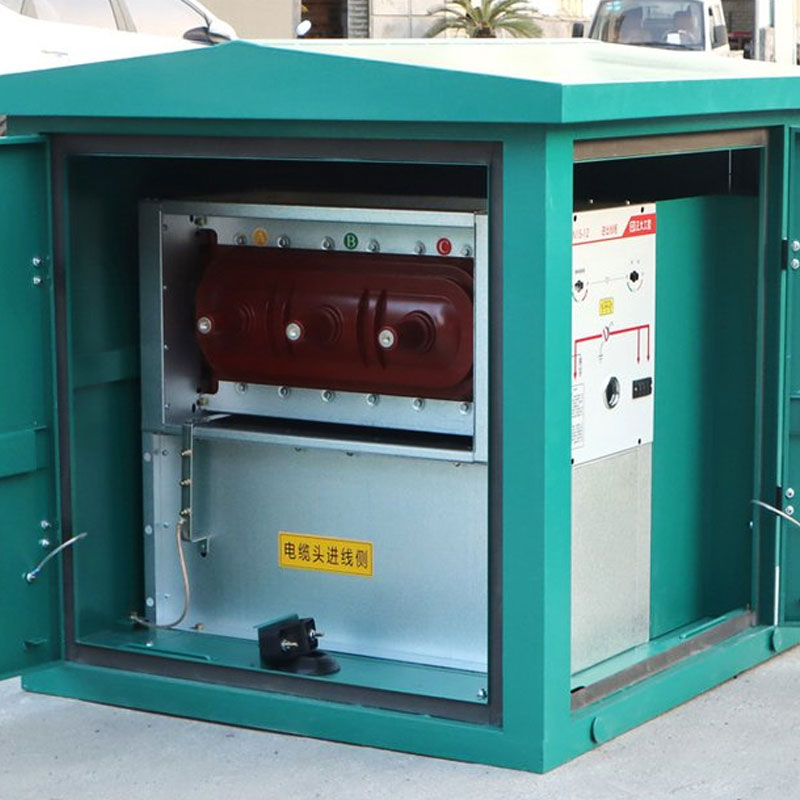

2. Internal Compartments and Components

• Busbar Compartment (core connector): 22KV Junction Cable Distribution Panel  typically use conduit (double ended connectors) or silicone rubber prefabricated busbars as conductive connectors. The busbar structure adopts air or solid insulation, which can achieve clear cable layout without the need for large spans.
• Cable Connectors (separable connectors): The core components of the 22KV Wiring Box mainly include the 630A main circuit connector, which is fixed with bolts to form the main channel, and the 200A branch connector, which is connected to the user side through live plugging.
• Grounding System: There is a main grounding busbar inside the box of 22KV Wiring Box Junction Cable Distribution Panel , All metal components and cable shielding layers inside the 22KV Wiring Box must be reliably grounded to ensure safe operation.

Optional Functional Components:

• Voltage presence indicator: The main function of this component is to display whether the busbar or cable is live or not, prevent accidental contact, and ensure personnel safety.
• Surge arrester: Lightning arresters are installed on the incoming or outgoing side to prevent equipment damage caused by lightning overvoltage.
• Fault indicator:This indicator is installed on the cable to quickly locate the location of equipment faults.
• Load break switch unit: In switch type cable branch boxes, SF6 or vacuum type load isolation switches are usually used to cut off load current.

Main technical parameters

Frequently Asked Questions (FAQ)

1. Q: How is “live-pluggable” achieved in 24kV cable branch boxes?

A: This mainly applies to the 200A connectors in US-type branch boxes. These connectors have internal arc-extinguishing features or special construction, and with a dedicated operating tool, they can be plugged/unplugged under load, acting as a load break switch. Note: 630A main circuit connectors must never be live-plugged/unplugged; they must only be screwed in/out with the tool after de-energization.

2. Q: Why are some branch boxes expensive while others are cheap?

A: Price differences mainly come from internal materials (imported silicone rubber vs. domestic, full-copper conductors vs. others), enclosure material (stainless steel vs. ordinary painted steel), and inclusion of switching units. A branch box with an SF6 switch costs significantly more than a basic type.

3. Q: Are internal connectors prone to failure due to moisture ingress?

A: High-quality branch boxes use silicone rubber prefabricated connectors. Silicone rubber has excellent hydrophobicity and high elasticity. When properly installed (clean interface), the sealing with the cable is extremely effective, allowing short-term submersion in water. Moisture resistance is very strong with correct installation.

4. Q: What is the difference between a cable branch box and a switching station (ring main unit)?

A: The medium voltage cable branch box has not any internal switch, which cannot cut off short-circuit current and only serves as a physical connection point. The ring main unit (RMU) is equipped with switch devices (circuit breakers/load isolation switches) with protection, control, and metering functions. The switch type cable branch box is located between the two, and its function is similar to a compact outdoor ring network unit.

5. Q: Is a foundation required for installing a cable branch box?

A: Yes. Although the device itself can be ground-mounted, for proper cable bending radius, waterproofing, dust protection, and operational convenience, a concrete plinth (approx. 30–50cm high) is typically required. The box is fixed on the plinth, and cables enter from the bottom.

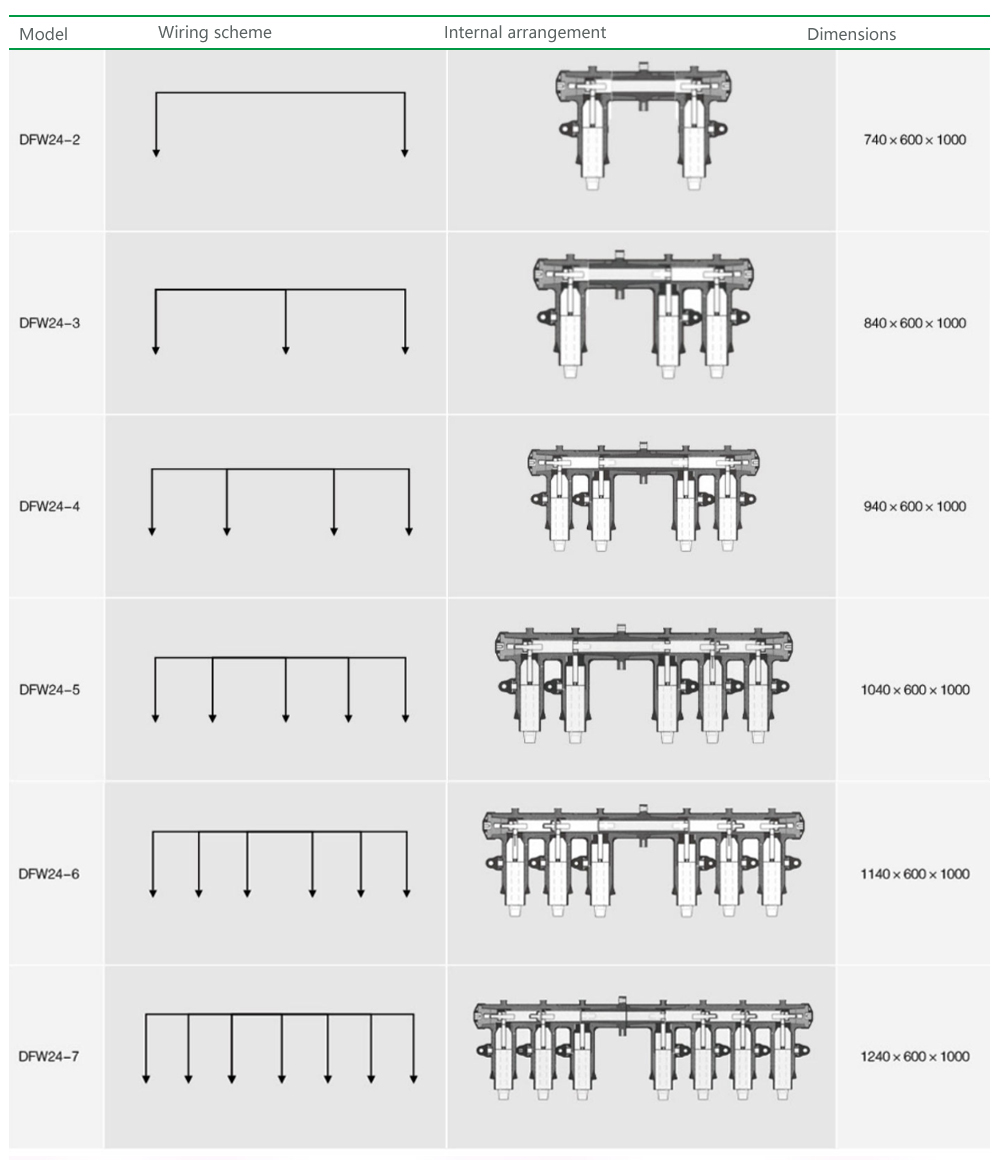

Order number description

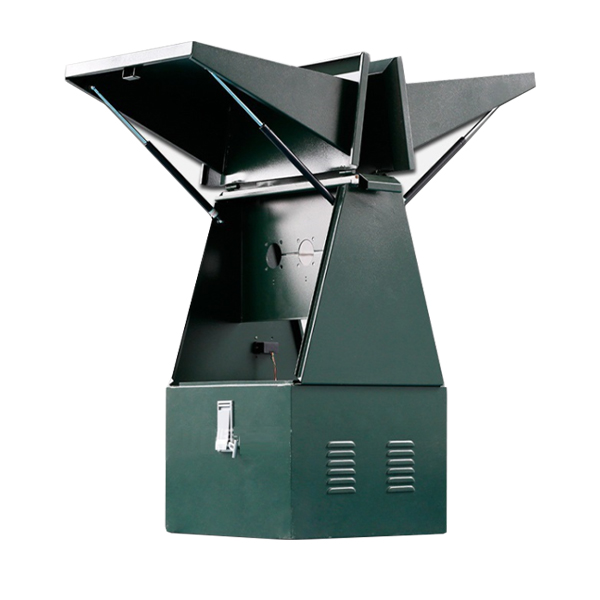

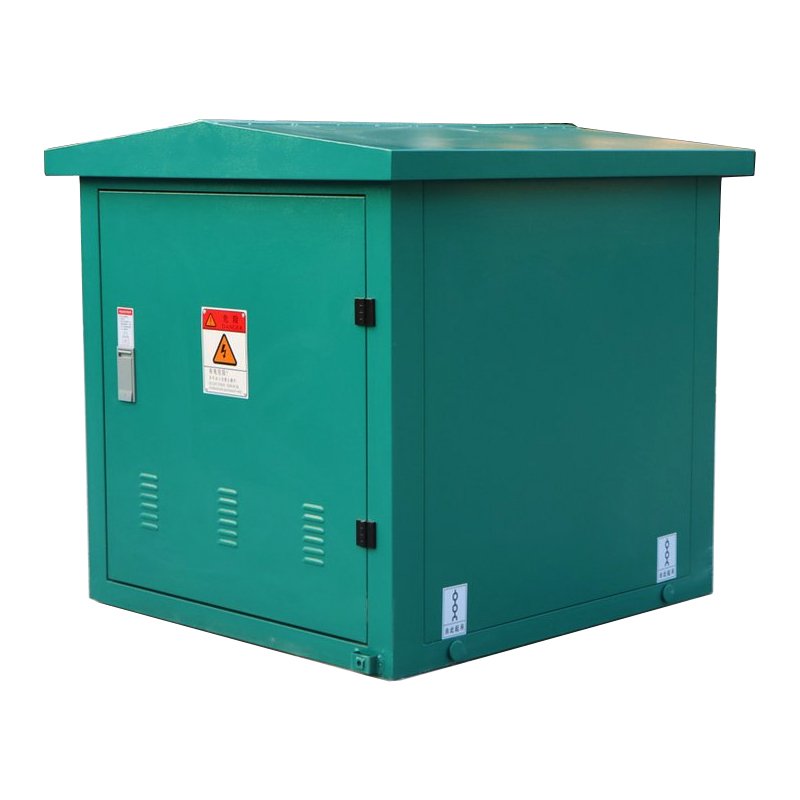

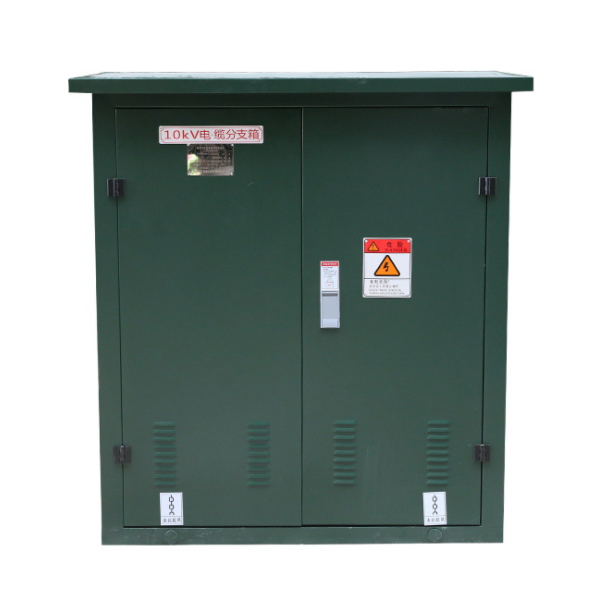

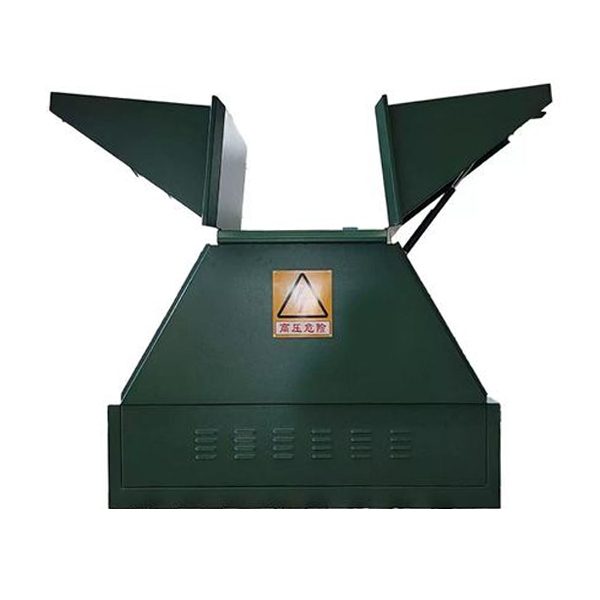

Products show:
